20-TON PIPE ROTATORS

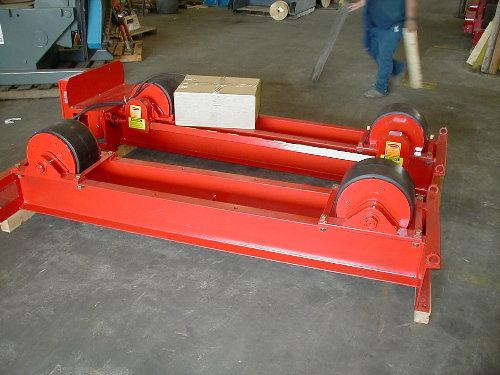

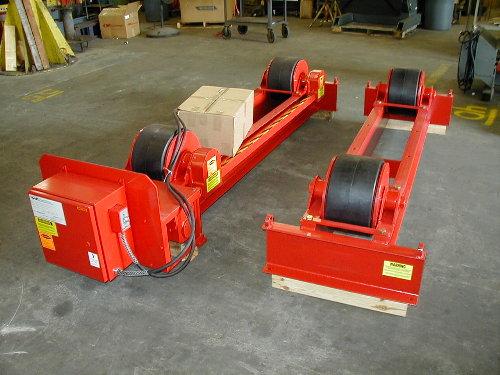

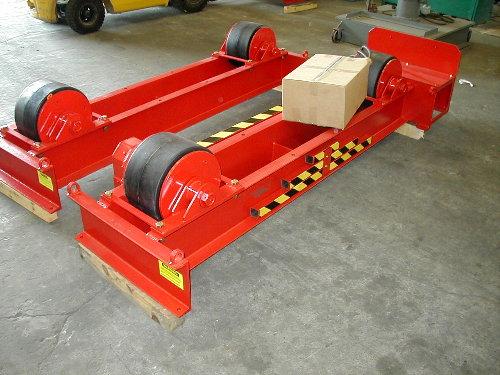

WWRD-20-ST TANK TURNING ROLLS
NEW ONE YEAR WARRANTY
VARIABLE SPEED
460-VOLT INPUT
6 INCH TO 16 FEET DIAMETER RANGE
|
| Item |
Specification |
| Model |
WWRD-20ST |
| |
| LOAD CAPACITY PER PIECE |
20,000lbs. (10 ton) |
| |
| LOAD CAPACITY DRIVER & 1 IDLER |
40,000lbs. (20 ton) |
| |
| LOAD CAPACITY DRIVER & 2 IDLERS |
60,000lbs (30 ton) |
| |
| DIAMETER RANGE, STANDARD |
6" to 16' |
| |
| WHEELS |
Rubber, 15" diameter w/ 9" face |
| |
| MOTOR |
1 1/2 HP AC |
| |
| SPEED |
56 IPM |
| |
| GEARBOX |
Primary drive w/ steel fabricated secondary gearboxes |
| |
| ELECTRICAL POWER |
440 volts |
| |
| CONTROL |
Variable speed programmable AC |
| |

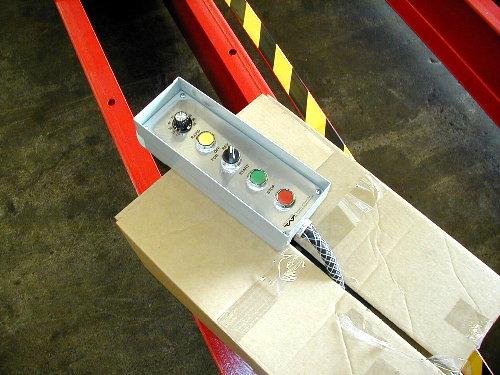

| HAND PENDANT |
Speed control, rapid, For/Rev, Start, Stop w/25' cable |
| |
| DIMENSIONS |
117"L X 29"W X 21"H |
| |
| SHIPPING WEIGHT-APPROX. |
1,500lbs. |
| |
|
| Item |
Specification |
| Model |
WWRI-20ST |
| |
| LOAD CAPACITY PER PIECE |
20,000lbs. (10 ton) |
| |
| Model |
97"L X 29"W X 21"H |
| |
| SHIPPING WEIGHT-APPROX. |
1,050lbs. |
| |
ons
|
| Item |
Specification |
| OPTION: FOOT CONTROLS |
Variable speed or ON/OFF |
| |
| OPTION: WHEELS |
Steel |
| |
| OPTION: ELECTRICAL POWER |
220 volt |
| |
