Weldwire Tank Turning Rolls - New
[TTR002209]

  • Weldwire Tank Turning Rolls - New | Capacity: 60,000 Pounds
Click to enlarge

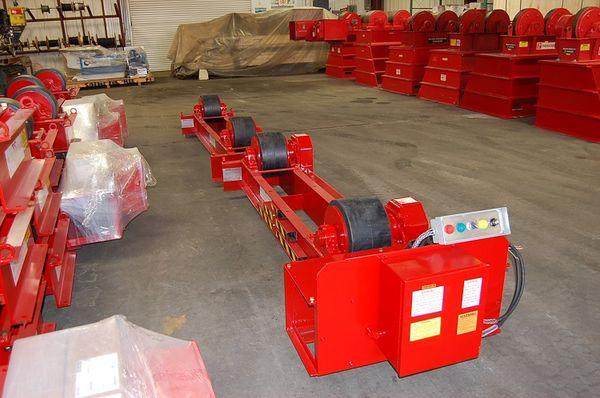

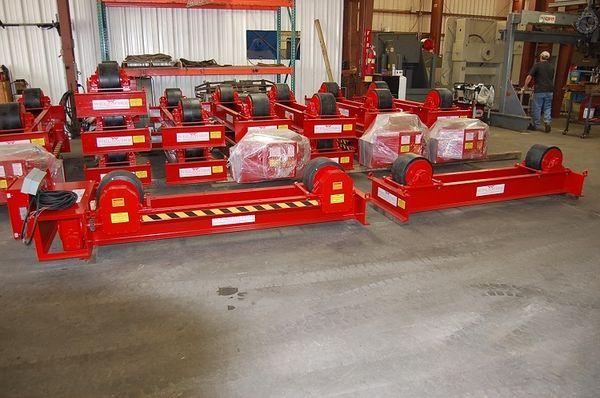

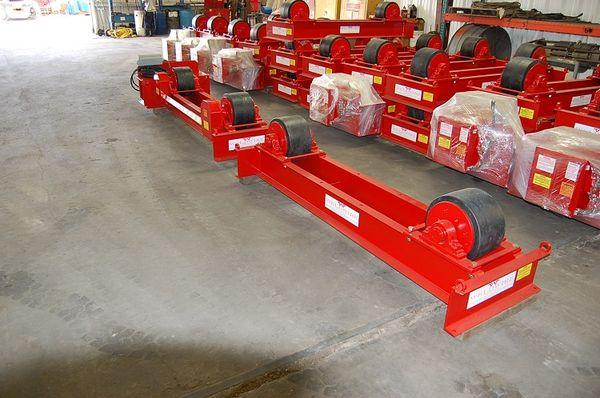

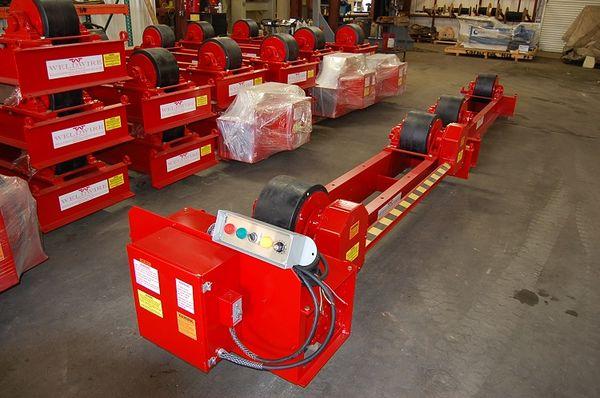

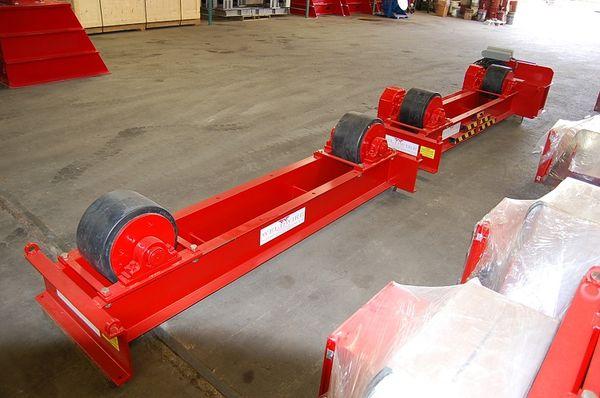

30-TON TANK TURNING ROLLS NEW

MADE BY WELDWIRE COMPANY

Drive

Item Specification
Model WWRD-30

LOAD CAPACITY PER PIECE 30,000lbs. (15 ton)

LOAD CAPACITY DRIVER & 1 IDLER 60,000lbs (30 ton)

LOAD CAPACITY DRIVER & 2 IDLERS 90,000lbs. (45 ton)

DIAMETER RANGE, STANDARD 6" TO 16'

WHEELS Rubber, 15" diameter w/ 9" face

MOTOR 2 HP AC

SPEED 56 IPM

GEARBOX Primary drive w/ steel fabricated secondary gearboxes

ELECTRICAL POWER 440 standard (or 220 please specify)

CONTROL Variable speed programmable AC

HAND PENDANT Speed control, rapid, For/Rev, Start, Stop w/25' cable

DIMENSIONS 132"L X 34"W X 28"H

SHIPPING WEIGHT-APPROX. 2,000lbs.




Item Specification
Model WWRI-30

LOAD CAPACITY PER PIECE 30,000lbs. (15 ton)

DIMENSIONS 113"L X 34"W X 28"H

SHIPPING WEIGHT-APPROX. 1,050lbs.




Specifications
  • Capacity: 60,000 Pounds
