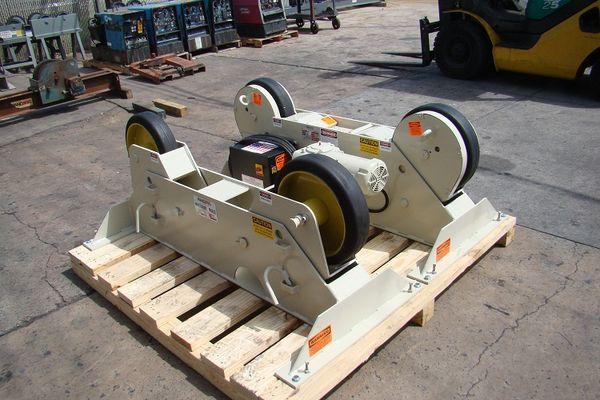

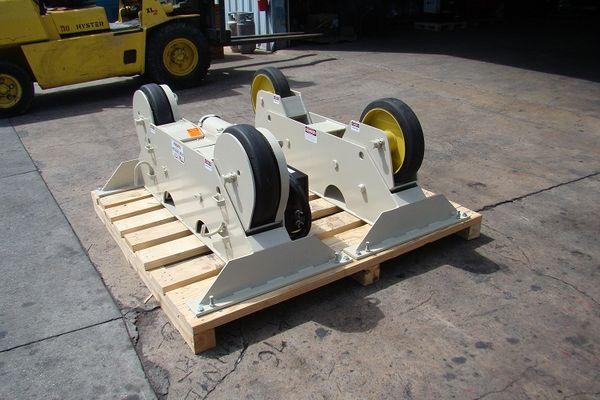

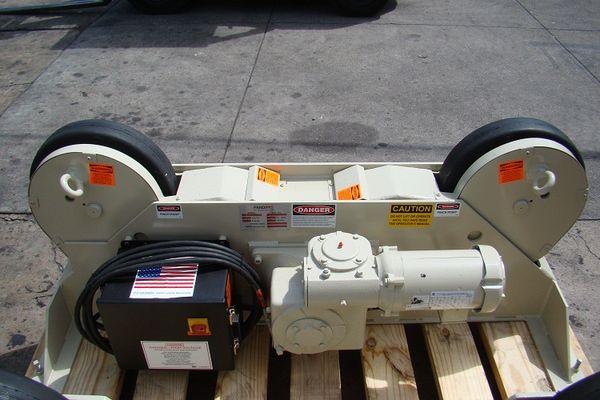

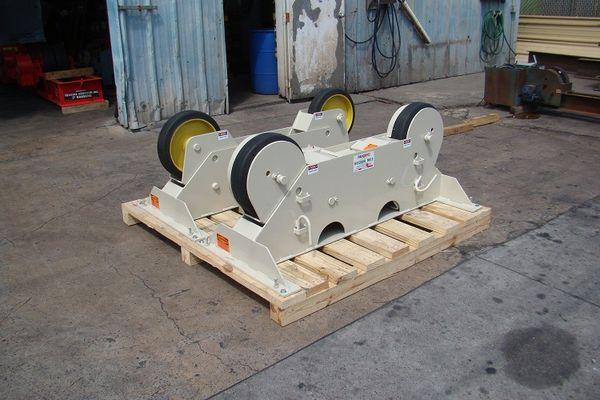

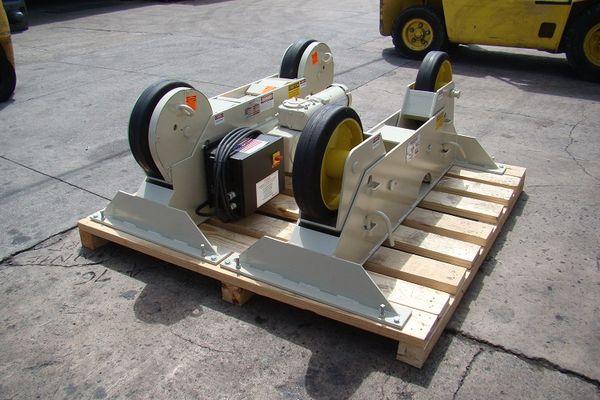

Pandjiris MM15/5 Tank Turning Rolls - New
[TTR005061]

  • Pandjiris MM15/5 Tank Turning Rolls - New | Capacity: 20,000 Pounds
Click to enlarge

Pandjiris

Model MM15/5 T

Weight Capacity of (1) MM-15 and (1) MI-5-T . . . . . . . . . . . . . . . . . . . . . . 10 tons

Weight Capacity of (1) MM-15 and (2) MI-5-T . . . . . . . . . . . . . . . . . . . . . . 15 tons

Turning Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30,000 lbs.

Tractive Effort . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1,385 lbs

Load Capacity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10,000 lbs.

Pipe Diameter Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4" thru 144"

Speed Range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.1 to 63.5 IPM

Motor Horse Power Rating . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1 HP

Wheel Diameter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16"

Combined Wheel Face . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4"

Price Each: Call for Price
QTY:


Specifications
  • Capacity: 20,000 Pounds
