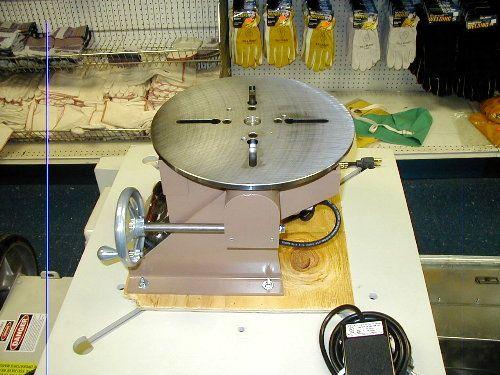

CAPACITY 200 LBS. BALANCED LOAD IN THE HORIZONTAL POSITION 100 LBS. BALANCED LOAD IN THE VERTICAL POSITION.
TABLE DIAMETER 12" STEEL SLOTTED GROUND PLATE
TABLE THICKNESS 5/16"

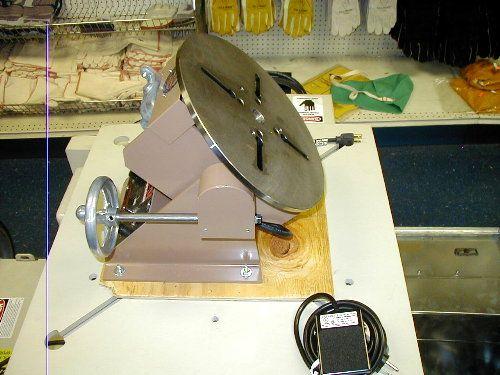

TABLE TILT 10 DEGREES FORWARD, 90 DEGREES BACKWARDS INFINITELY VARIABLE WITH HAND CRANK AND LOCKING BOLT.
POWER REQUIREMENTS 110 VOLT 60 CYCLE

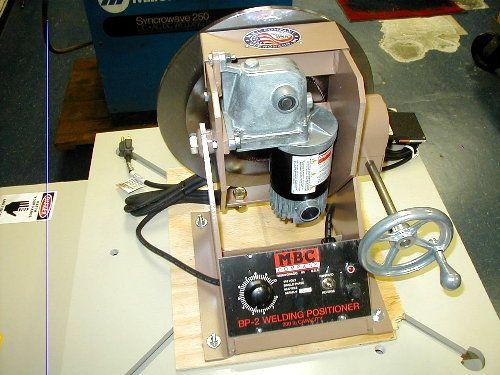

MOTOR PERMANENT MAGNET DC GEARMOTOR 1/12 H.P. 90 VOLT
SPEED CONTROL SOLID STATE DC-SCR HIGH FREQUENCY FILTER FUSED OVERLOAD PROTECTION WITH POWER ON INDICATOR LIGHT
SPEED RANGE BP-2-A 0-4.5 RPM 102 IN. LBS. TORQUE; BP-2-B 0-9 RPM 102 IN. LBS TORQUE; BP-2-SB 0-18 RPM 56 IN LBS. TORQUE
FOOT SWITCH UNIT COMES WITH STANDARD DUTY ON-OFF FOOT SWITCH-BP-245
GROUND CURRENT 250 AMP

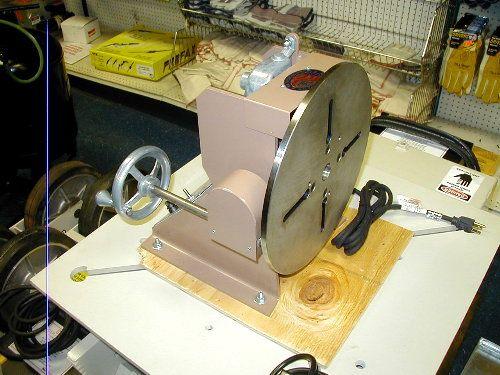

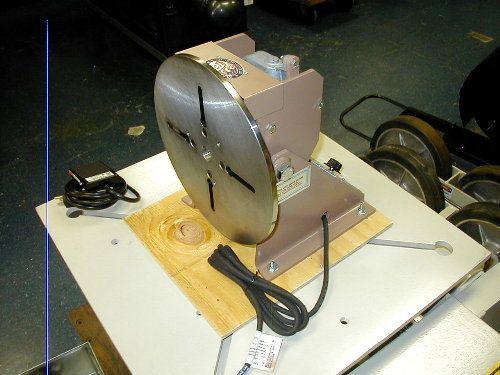

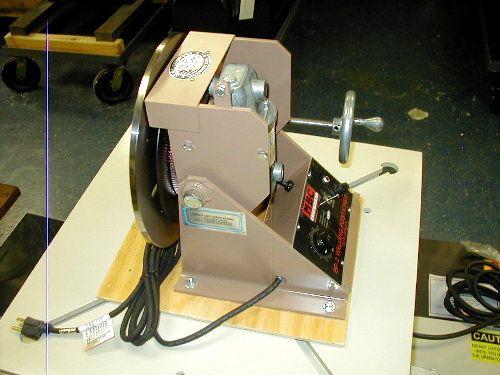

SHIPPING WEIGHT 56 LBS. (CAN BE UPS'ED) THE M.B.C. MODEL BP-2 WELDING POSITIONER IS THE "WORKHORSE" OF OUR LINE. THE BP-2 IS STURDY, SMOOTH RUNNING POSITIONER THAT WILL HANDLE THE LOADS AND HEAVY DEMANDS OF PRODUCTION MIG AND INTRICATE TIG WELDING. THE BP-2 POSITIONER HANDLES UP TO 200 LBS. BALANCED LOAD IN THE HORIZONTAL POSITION.
90 DAY WARRANTY
$1,954.00
