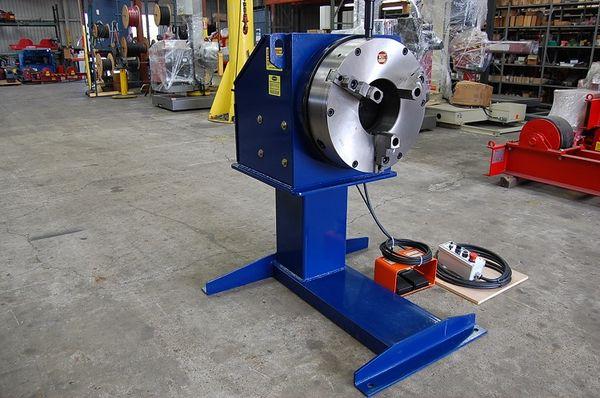

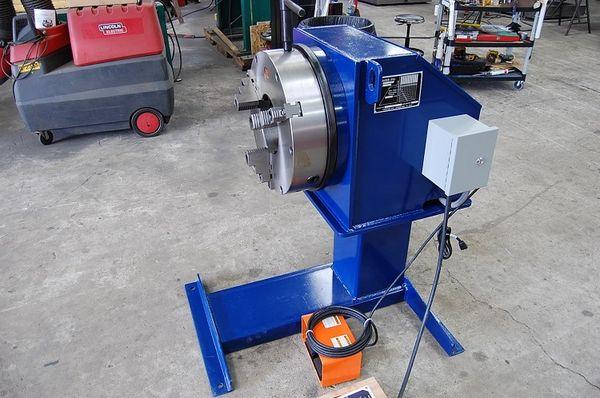

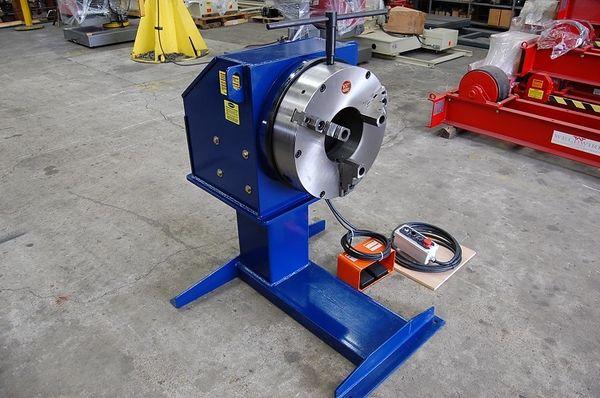

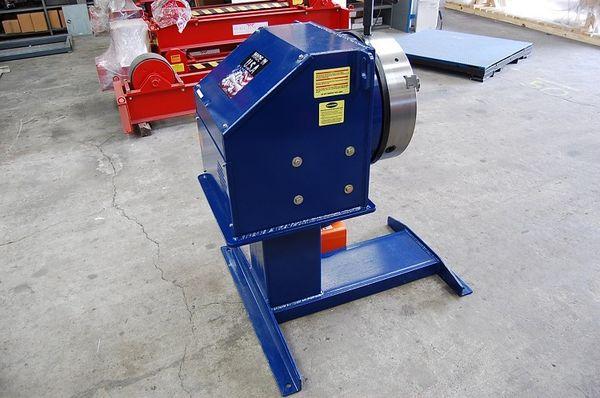

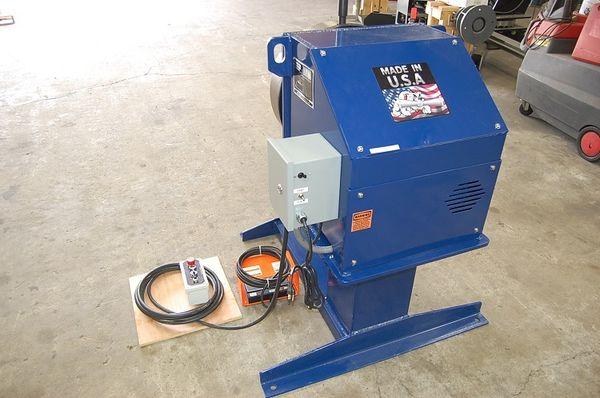

BULLDOG 3,000 LB WELDING POSITIONER
MODEL #BD3000 MADE IN USA
LOAD CAPACITY: 3,000 LBS 6 INCH OVERHUNG FROM FACE TO TABLE, 6 INCH ECCENTRICITY
ROTATIONAL MOTOR SIZE: 1/2 HP INVERTER DUTY MOTOR
ROTATION SPEED: VARIABLE FROM 0.1-1.75 RPM
ROTATION TORQUE: 20,800 IN- LBS
VOLTAGE: 120 VAC 10 AMP, 6 FOOT POWER CORD WITH PLUG ( OPTIONAL 230/480 VAC)
CHUCK: 20 INCH SELF-CENTERING 3 JAW WITH REVERSIBLE TOP JAWS, SEMI-STEEL BODY
CENTER OF CHUCK TO FLOOR 36"
PENDANT: TEN-TURN POTENTIOMETER, RAPID, CCW/STOP/CW SELECTOR SWITCH, AND E-STOP WITH 25 FOOT CABLE
FOOT PEDAL: DUAL FOOT PEDAL WITH 25 FOOT CABLE
GROUND: ROTARY 500 AMP
1 YEAR WARRANTY
MACHINE WEIGHT 1008 LBS SHIPPING WEIGHT 1175 LBS DIMS 60"X60"X53"
