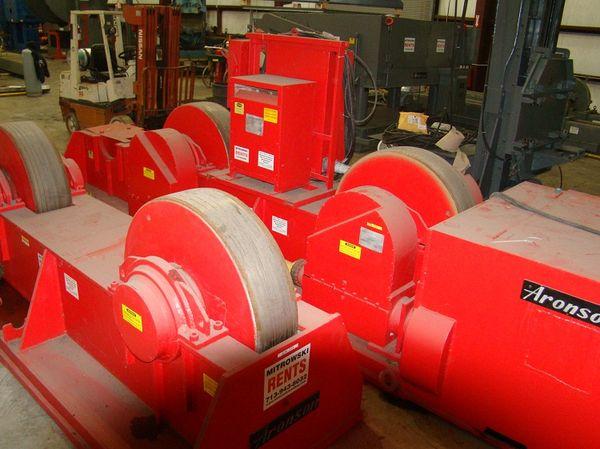

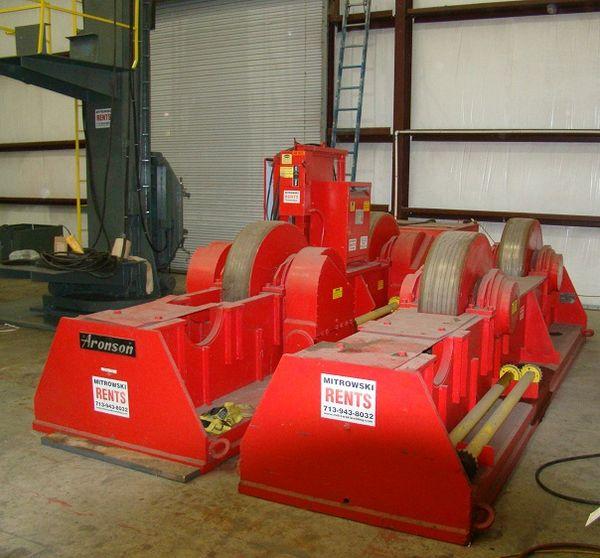

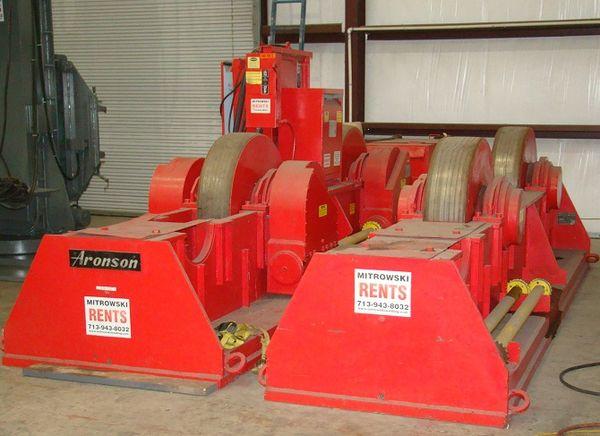

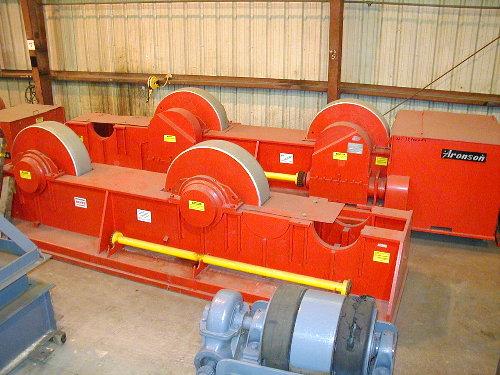

Aronson WSD-1000 Tank Turning Rolls - Rental
[TTR004132]

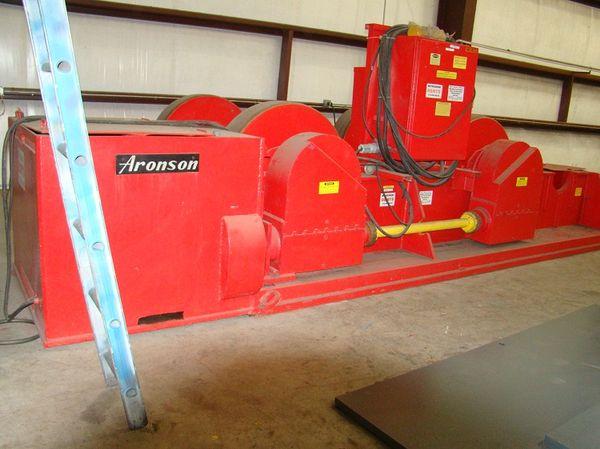

  • Aronson WSD Tank Turning Rolls - Rental | Capacity: 2,000,000 Pounds
Click to enlarge

MANUFACTURE ARONSON
SIZE 1000 STEEL WHEEL TURNING ROLLS

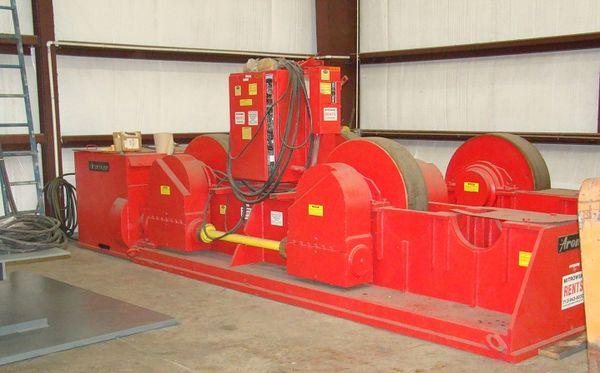

WSD 1,000 VARIABLE SPEED DRIVER 35,500 LBS
1,000,000 LBS WEIGHT CAPACITY. TURNING CAPABILITY FOR A 1,200 TON CONCENTRIC VESSEL. 66" TO 35' DIAMETER RANGE WITH (3) 82", 106" AND 130" LINE BORED CENTER DISTANCE CRADLE SOCKETS AND DRIVE SHAFTS. WHEEL SURFACE SPEED 4" PER MINUTE TO 40" PER MINUTE WITH 80,000 LBS. TRACTIVE PULL.30HP 100: 1 AC MOTOR AND DRIVE WITH DYNAMIC BRAKING. RAPID TRAVERSE AND MOTOR OVER TEMPERATURE INDICATOR LIGHT IN ELECTRICAL PANEL. DUST-TIGHT PENDENT WITH 10-TURN POT FOR-OFF-REV SELECTOR/START/STOP/RAPID TRAVERSE PUSH BUTTONS, WITH 60' CABLE. 40" DIAMETER X 10" WIDE, SOLID  CARBON STEEL WHEELS. THROUGH HARDENEDTO ROCKWELL "C" 45-50, PRECISION MACHINED CROWN-FACE. 460/3/60 NEMA 12 DUST-TIGHT ELECTRICALS. 115V CONTROL VOLTAGE.
WSI 1,000 IDLER 24,500LBS
1,000,000 LBS. CAPACITY SIMILAR TO WSD 1,000 BUT NOT POWERED.
WHEELS 10" WIDE X 40" DIAMETER X 48" TO THE FLOOR
DRIVER 221" LONG X 56" WIDE X 48" TALL
IDLER 174" LONG X 48" WIDE X 48" TALL

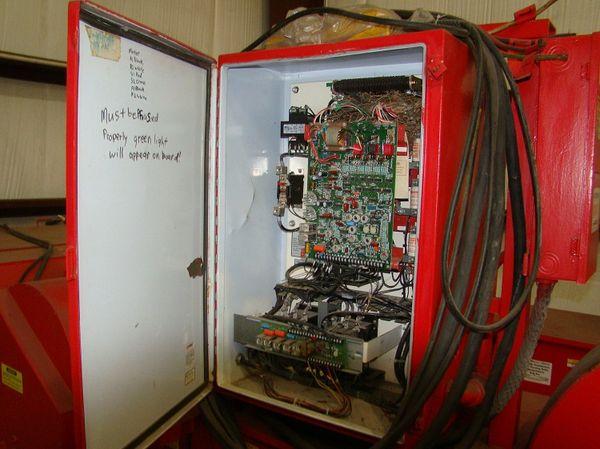

SEPERATE CONTROL BOX 43" WIDE X 47" TALL X 36" DEEP

Price Each: Call for Price
QTY:


Specifications
  • Capacity: 2,000,000 Pounds
