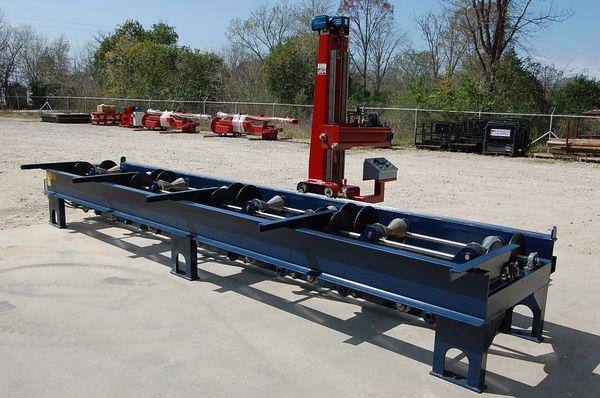

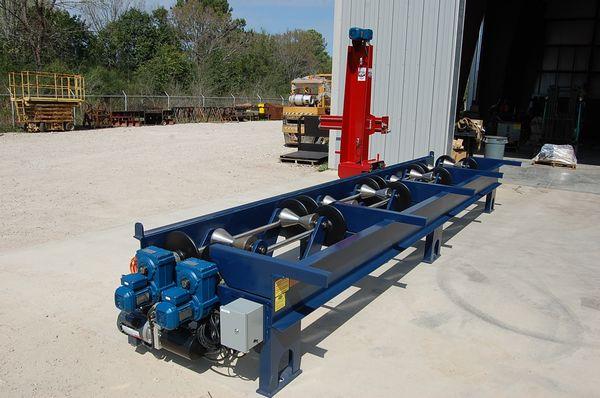

20 FT Triofab Pipe Cutting Machine
[OE005192]

Click to enlarge


20 FT TRIOFAB PIPE CUTTING MACHINE 120 VOLT ACCEPTS OXY/FUEL OR PLASMA

Specs:

 • 120volt 15 amp (2x)

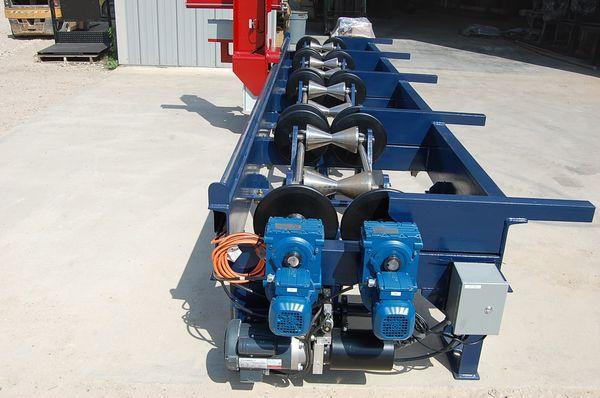

 • Dual drive with Inverter duty motors

 • Rotation combined torque 6,020 in-lb

 • Speed Range IPM 10-295

 • Wheels 13" OD by 1" thick with keyway

 • Drive Shaft 1 1/2" with keyway

 • Load capacity 10,000 lbs evenly across

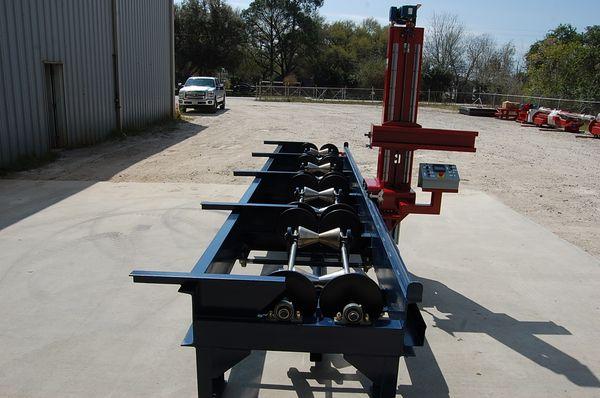

 • Motorized Boom with travel limits

 • Heavy duty channel frame with gussets

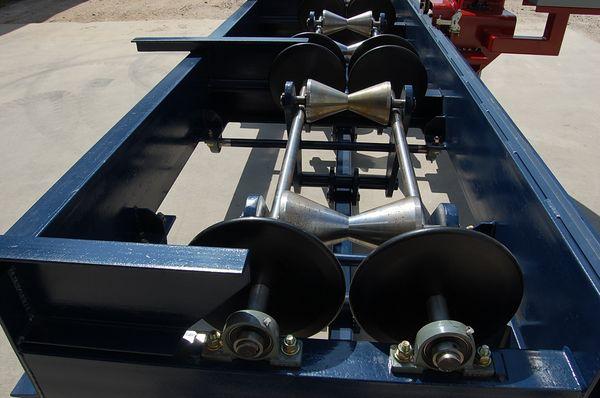

 • Heavy duty Vee rollers with hydraulic lift

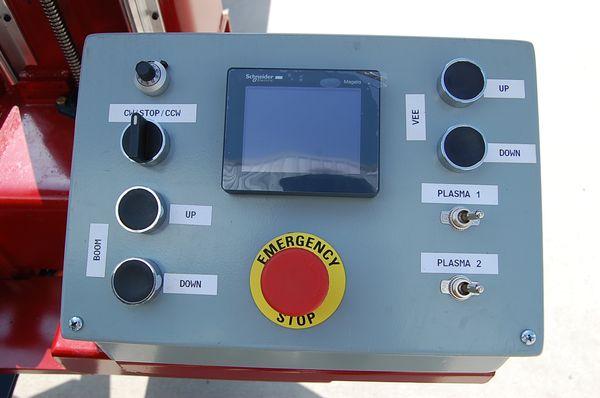

 • Operator station : HMI touch screen that displays IPM (inches per minute)  10 turn pot, CCW/Stop/CW selector switch, Boom UP & DOWN, Vee rollers UP & DOWN, plasma start #1 & #2 and e-stop

 • Pipe capacity 2.375-30". Unit is a pass thru design so pipe can be longer than machine.



Specifications
  • Capacity: 2.375" - 30" Pipe
