400 AMP Thermal Dynamics PAK 44 Plasma Cutting Machine
Click to enlarge

400 AMP Thermal Dynamics PAK 44 Plasma Cutting Machine

[PCM003139]

Capacity: 400 AMP 3" CUTTING

THERMAL DYNAMICS

PAK 44 PLASMA CUTTING SYSTEM

PCM 6 B MACHINE TORCH

Process(es) Heavy-Duty Plasma Cutting
Production Cut 2.00 in.
Maximum Cut 3.00 in. (76.2mm) Maximum Edge Start
Torch PCH-6B (not included)

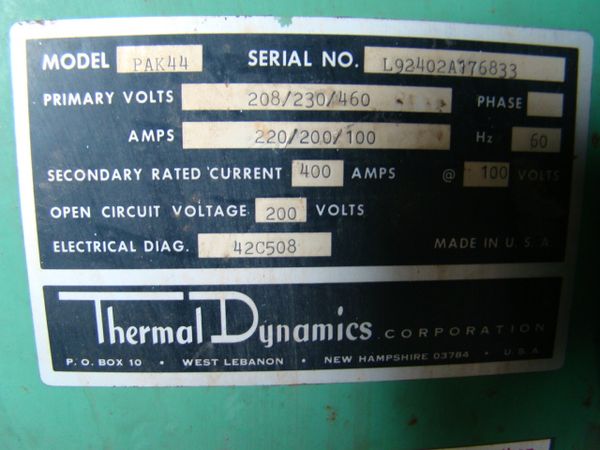

Rated Output 400 Amps
Output Range 50-400 Amps
Input Volts 208-230/460V, 3ph 50-60Hz
  400V, 3ph 50-60Hz
  575V, 3ph 50-60Hz
Input Amps @ Rated Output 115A @ 575V
  140A @ 460V
  290A @ 230V
Duty Cycle 100% at 400 Amp
Max OCV
Pre-Flow Gas Air at 120 psi (8.3 bar)
Plasma Gas Ar-H2, N2, Air @ 120 psi
Shield Gas Air @ 120 psi
  H2O @ 15 gph
Weight 1,640 lbs
Dimensions H 36.125" x W 32" x D 48"




Product Images:

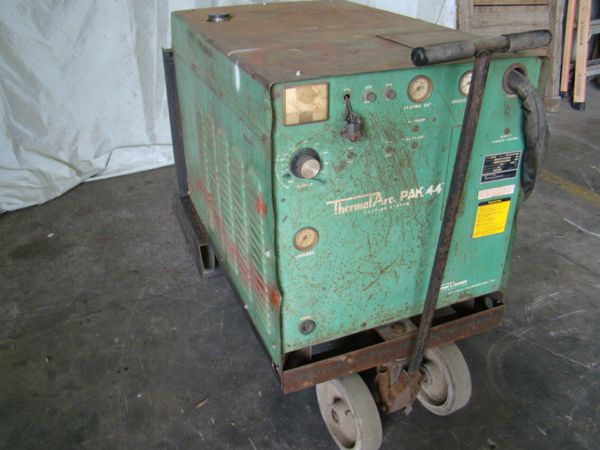

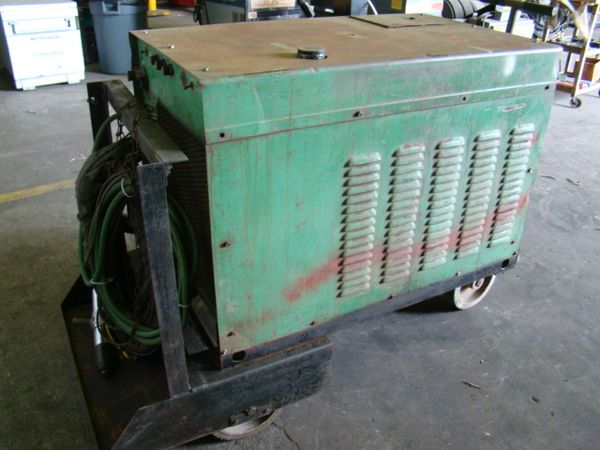

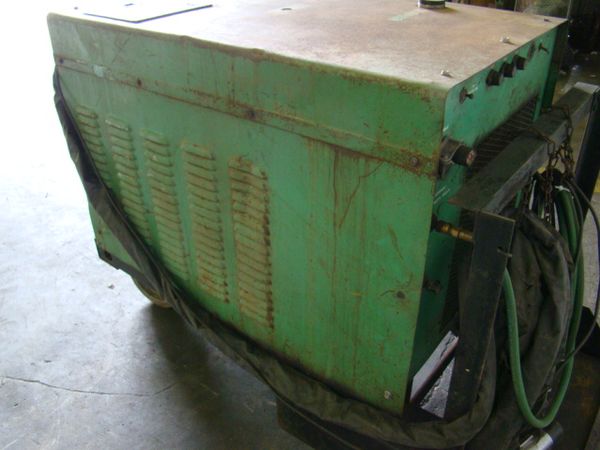

400 AMP Thermal Dynamics PAK 44 Plasma Cutting Machine
Click to enlarge 		400 AMP Thermal Dynamics PAK 44 Plasma Cutting Machine
Click to enlarge 		400 AMP Thermal Dynamics PAK 44 Plasma Cutting Machine
Click to enlarge 		400 AMP Thermal Dynamics PAK 44 Plasma Cutting Machine
Click to enlarge
400 AMP Thermal Dynamics PAK 44 Plasma Cutting Machine
Click to enlarge
