1/4" Thermal Dynamics Cutmaster 39 S/N US52251775 Plasma Cutting Machine

[PCM003141]

Capacity: 1/4" $1,300.00

Included Features

Power Supply
20 ft. (6.1m) Lead

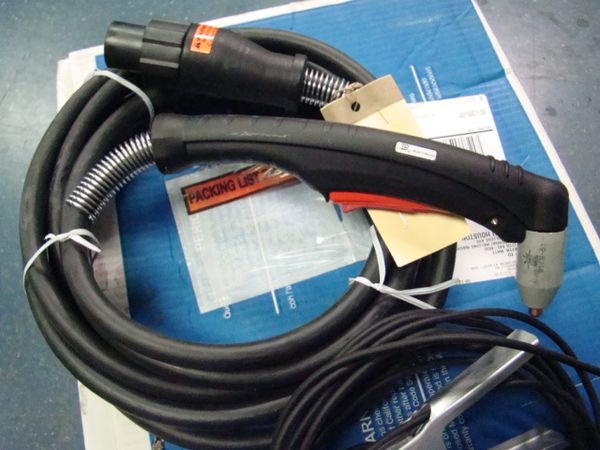

1Torch SL60, 75 deg. Head
8 ft. (2.4m) Input Power Cable, Work Cable and Clamp
Spare Parts Kit
Operating Manual

Process(es)	Manual Air Plasma Cutting
Industrial Applications	HVAC
	Home Shop Plumbing
	Auto Body Repair
Production Cut	0.25 in. (6mm) Recommended Cut
Maximum Cut	0.625 in. (15mm) Maximum Cut
Torch Model	SL40
Rated Output	30 Amps
Output Range	20-30 Amps
Output Power	2.8kW
Input Volts	115-230V, 1 ph, 50-60Hz
Input Amps @ Rated Output	29A @ 115V
	16A @ 208V
	14A @ 230V
Duty Cycle	35% @ 30A
	60% @ 22A
Plasma Gas	Air @ 65 psi
Weight	39 lbs (17.7kg)
Gas Flow	5.0 cfm (141 lpm)
Pilot	Start Cartridge
Control	Hand Torch Switch
Dimensions	H 15" x W 12" x L 24"
Certifications	IP-23C, CSA NTRL/C, CE
Warranty	4 Years Power Supply, 1 Year Torch

Product Images:

Click to enlarge	Click to enlarge	Click to enlarge	Click to enlarge
Click to enlarge	Click to enlarge
