50 AMP Thermal Dynamics CutMaster 52 1/2" - Plasma Cutting Machine

[PCM003125]

Capacity: 50 AMP

50 AMP THERMAL DYNAMICS CUTMASTER 52 1/2"

THERMAL DYNAMICS

PLASMA CUTTER

CUTMASTER 52

S/N-05503408 STOCK#1-5131-1

General
  Included Features
Operating Manual
10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
1Torch SL60, 75 deg. Head
Power Supply
Spare Parts Kit
50 ft. (6.1m) Lead
Quick Specifications
  Gas Flow
6.7 cfm (190 lpm)
  Amperage Range
20-60 Amps
  Weight
43 lbs (19.5kg)
  Input Power
400V 3 phase 50Hz
208/230 - 460V 1/3 Phase 50/60 Hz
600V 3 phase 50/60Hz
  Industrial Applications
Construction
Fabrication
Maintenance/Repair
  Cut Capacity
0.50 in. (12mm) Recommended Cut
1.125 in. (30mm) Maximum Cut
  Duty Cycle
40% @ 60A, 60% @ 55A, 100% @ 50A
  Process(es)
Manual Air Plasma Cutting
  Gas Pressure
75 psi (4.8 bar)
  Pilot
Start Cartridge
  Torch
SL60 with ATC (hand), SL100 (mechanized)
  Gas Type
Air
  Control
Hand Torch Switch or Hand Pendant Control
  Certifications
IP23S

CART OPTIONAL





Product Images:

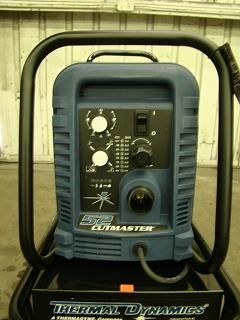

50 AMP Thermal Dynamics CutMaster 52 1/2" - Plasma Cutting Machine
Click to enlarge

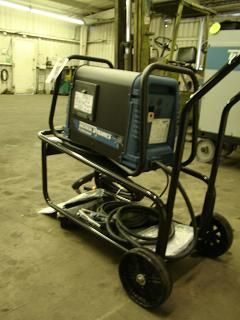

50 AMP Thermal Dynamics CutMaster 52 1/2" - Plasma Cutting Machine
Click to enlarge

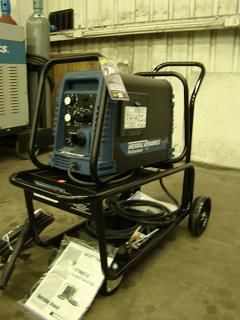

50 AMP Thermal Dynamics CutMaster 52 1/2" - Plasma Cutting Machine
Click to enlarge

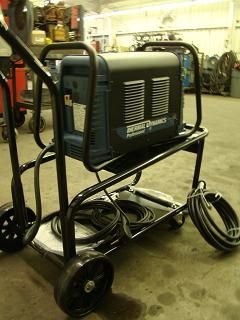

50 AMP Thermal Dynamics CutMaster 52 1/2" - Plasma Cutting Machine
Click to enlarge
