100 AMP Thermal Dynamics Cutmaster 102 1" - Plasma Cutting Machine

[PCM003126]

Capacity: 100 AMP

100 AMP THERMAL DYNAMICS CUTMASTER 102 1"

THERMAL DYNAMICS

PLASMA CUTMASTER

CUTMASTER 102

S/N-05654214 STOCK#1-1330-1

General
  Included Features
Operating Manual
10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp
1Torch SL100, 75 deg. Head
Power Supply
Spare Parts Kit
20 ft. (6.1m) Lead
Quick Specifications
  Gas Flow
7.5 cfm (212 lpm)
  Amperage Range
20-100 Amps
  Weight
62 lbs (28.1kg)
  Input Power
400V 3 phase 50Hz
208/230 - 460V 1/3 Phase 50/60 Hz
600V 3 phase 50/60Hz
  Industrial Applications
Contractors
Heavy Fabrication
Manufacturing
  Cut Capacity
1.75 in. (45mm) Maximum Cut
1.00 in. (25mm) Recommended Cut
  Duty Cycle
40% @ 100A
  Process(es)
Manual Air Plasma Cutting
  Gas Pressure
70 psi (4.8 bar)
  Pilot
Start Cartridge
  Torch
SL100 with ATC (hand)
  Gas Type
Air
  Control
Hand Torch Switch or Hand Pendant Control
  Certifications
IP23S

CART OPTIONAL



Product Images:

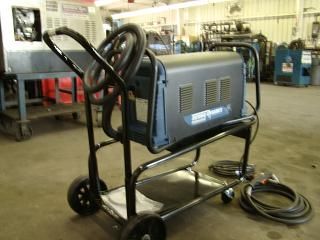

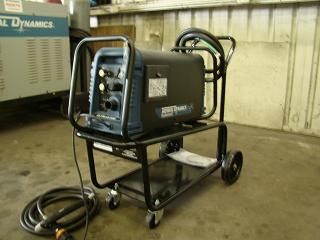

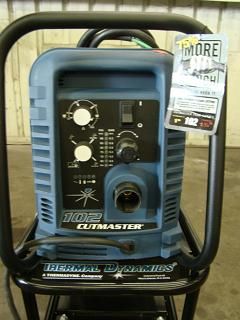

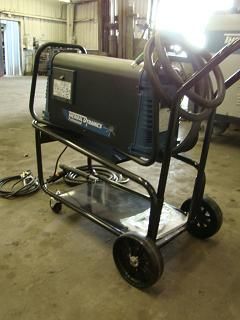

100 AMP Thermal Dynamics Cutmaster 102 1" - Plasma Cutting Machine
Click to enlarge
100 AMP Thermal Dynamics Cutmaster 102 1" - Plasma Cutting Machine
Click to enlarge
100 AMP Thermal Dynamics Cutmaster 102 1" - Plasma Cutting Machine
Click to enlarge
100 AMP Thermal Dynamics Cutmaster 102 1" - Plasma Cutting Machine
Click to enlarge
100 AMP Thermal Dynamics Cutmaster 102 1" - Plasma Cutting Machine
Click to enlarge
100 AMP Thermal Dynamics Cutmaster 102 1" - Plasma Cutting Machine
Click to enlarge
