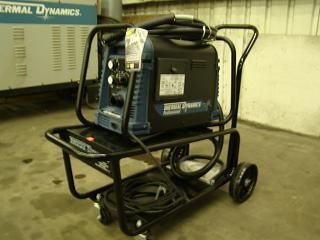

80 AMP THERMAL DYNAMICS CUTMASTER 82 3/4"
THERMAL DYNAMICS
PLASMA CUTTER

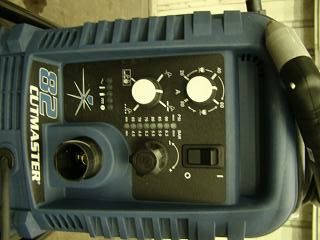

CUTMASTER 82

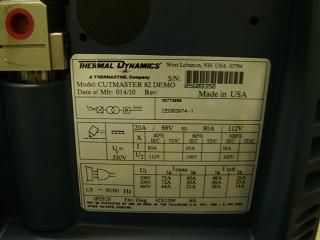

S/N-05609350 STOCK#1-1130-1
CART OPTIONAL
General
Included Features Operating Manual
10 ft. (3.0m) Input Power Cable, Work Cable without 20 Amp Plug (460V) and Clamp

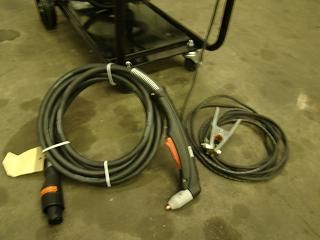

1Torch SL60, 75 deg. Head
Power Supply
Spare Parts Kit
20 ft. (6.1m) Lead
Quick Specifications
Gas Flow 6.7 cfm (190 lpm)
Amperage Range 20-80 Amps
Weight 43 lbs (19.5kg)
Input Power 400V 3 phase 50Hz
208/230 - 460V 1/3 Phase 50/60 Hz
600V 3 phase 50/60Hz
Industrial Applications Contractors
Heavy Fabrication
Manufacturing
Cut Capacity 1.50 in. (40mm) Maximum Cut
0.75 in. (20mm) Recommended Cut
Duty Cycle 40% @ 80A, 60% @ 65A, 100% @ 55A
Process(es) Manual Air Plasma Cutting
Gas Pressure 70 psi (4.8 bar)
Pilot Start Cartridge
Torch SL60 with ATC (hand), SL100 (mechanized)
Gas Type Air
Control Hand Torch Switch or Hand Pendant Control
Certifications IP23S
