5 Ton Tank Turning Rolls, New - Tank Turning Rolls

[TTR002215]

Capacity: 5 Tons

5-TON TANK TURNING ROLLS, NEW

120 VOLT INPUT VARIABLE FREQUENCY SPEED CONTROL

3"X14" WHEELS

ADJUSTABLE WHEEL CENTERS

6"-13' DIAMETER ACCEPTANCE

MODEL WWRD-5, WWRI-5


Item	Specification
Model	WWRD-5

LOAD CAPACITY PER PIECE	5,000lbs. (2.5 tons)

LOAD CAPACITY DRIVER & 1 IDLER	10,000lbs. (5 tons)

LOAD CAPACITY DRIVER & 2 IDLERS	15,000lbs. (7.5 tons)

DIAMETER RANGE, STANDARD	6" TO 13'

WHEELS	Rubber, 14" diameter w/ 3" face

MOTOR	1/2 HP AC

SPEED	45 IPM

GEARBOX	Primary drive w/secondary gearboxes

ELECTRICAL POWER	110 volt/60hz

CONTROL	Variable speed programmable AC

HAND PENDANT	Speed control, rapid, For/Rev, Start, Stop w/25' cable

DIMENSIONS	102"L X 24"W X 19"H

SHIPPING WEIGHT-APPROX.	900lbs.

Idler
Item	Specification
Model	WWRI-5

LOAD CAPACITY PER PIECE	5,000lbs.

DIMENSIONS	85"L X 24"W X 19"H

SHIPPING WEIGHT-APPROX.	500lbs.


Item	Specification
OPTION: FOOT CONTROLS	Variable speed or ON/OFF

OPTION: WHEELS	Steel

OPTION: ELECTRICAL POWER	220volts

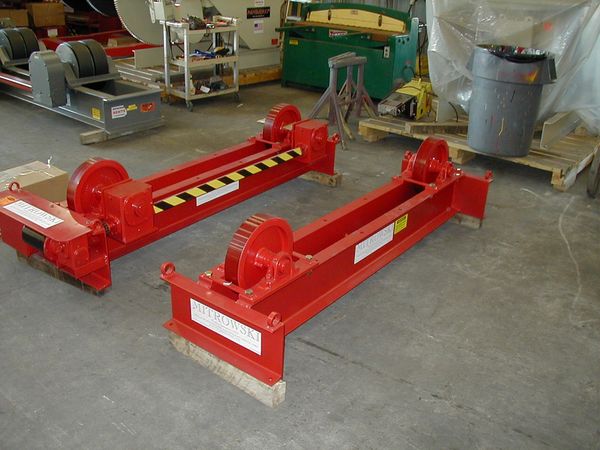

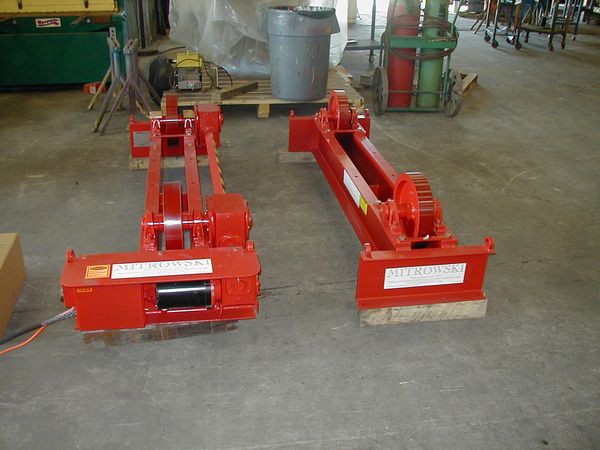

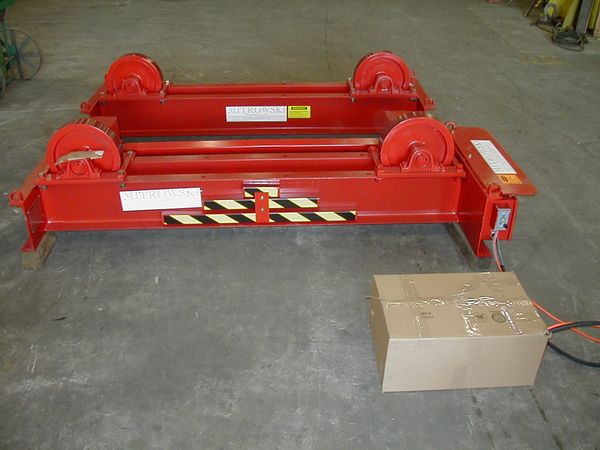

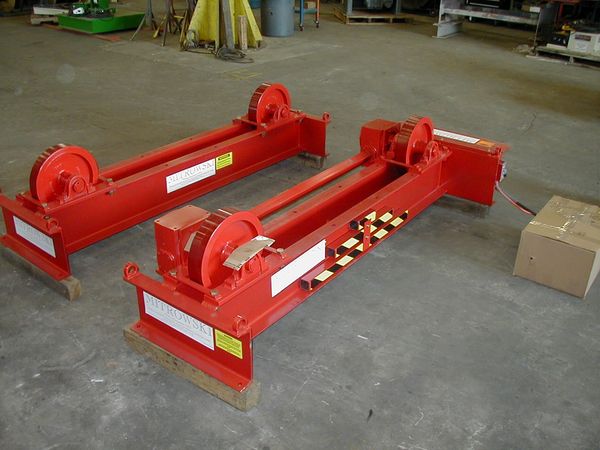

Product Images:

Click to enlarge	Click to enlarge	Click to enlarge

Idler
