20-Ton, New - Tank Turning Rolls

[TTR002341]

Capacity: 20 tons

20-TON PIPE ROTATORS
WWRD-20-ST TANK TURNING ROLLS
NEW ONE YEAR WARRANTY
VARIABLE SPEED
460-VOLT INPUT

6 INCH TO 16 FEET DIAMETER RANGE


Item	Specification
Model	WWRD-20ST

LOAD CAPACITY PER PIECE	20,000lbs. (10 ton)

LOAD CAPACITY DRIVER & 1 IDLER	40,000lbs. (20 ton)

LOAD CAPACITY DRIVER & 2 IDLERS	60,000lbs (30 ton)

DIAMETER RANGE, STANDARD	6" to 16'

WHEELS	Rubber, 15" diameter w/ 9" face

MOTOR	1 1/2 HP AC

SPEED	56 IPM

GEARBOX	Primary drive w/ steel fabricated secondary gearboxes

ELECTRICAL POWER	440 volts

CONTROL	Variable speed programmable AC

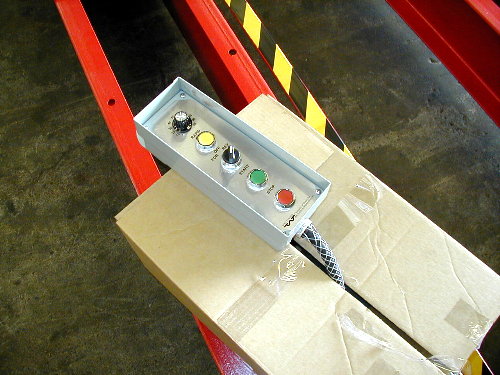

HAND PENDANT	Speed control, rapid, For/Rev, Start, Stop w/25' cable

DIMENSIONS	117"L X 29"W X 21"H

SHIPPING WEIGHT-APPROX.	1,500lbs.


Item	Specification
Model	WWRI-20ST

LOAD CAPACITY PER PIECE	20,000lbs. (10 ton)

Model	97"L X 29"W X 21"H

SHIPPING WEIGHT-APPROX.	1,050lbs.

ons
Item	Specification
OPTION: FOOT CONTROLS	Variable speed or ON/OFF

OPTION: WHEELS	Steel

OPTION: ELECTRICAL POWER	110 volt or 220 volt

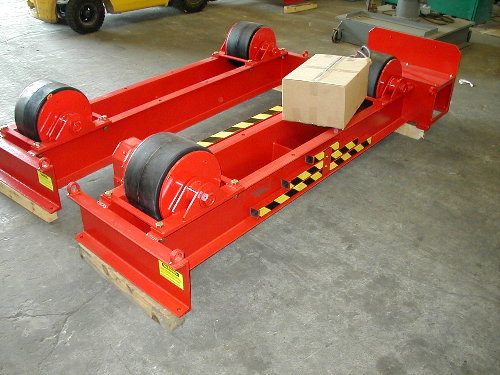

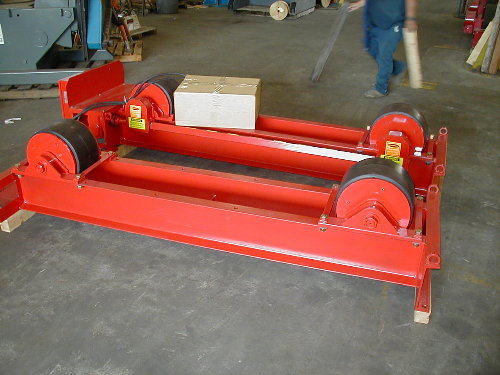

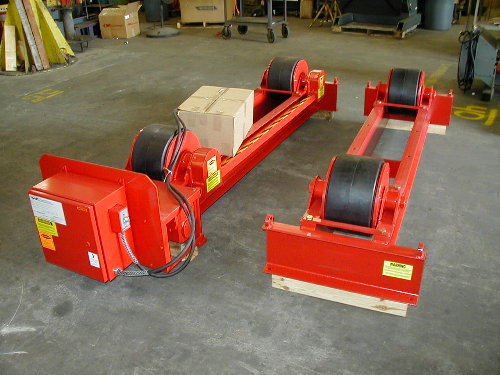

Product Images:

Click to enlarge	Click to enlarge	Click to enlarge

Related Files:

CLICK HERE FOR SPECIFACATIONS
