225 Amp Ranger 225 S/N U1110101619 Gasoline Welding Machine

Got It Covered!™ Enclosed-Case Welder

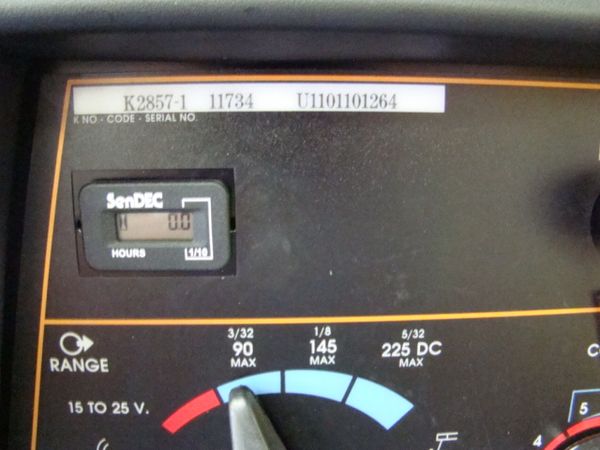

Product Number:  K2857-1

Industrial Price: 3299.00 (USD) *See Details



A great choice for getting the job done! For construction contractors, maintenance crews, farmers or ranchers, the Ranger® 225 does a variety of basic welding jobs. And with 10,500 watts of peak AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power. At your service – everyday!™

Review our Ranger® Selection Guide to be sure you select the engine driven welder/generator that's right for you.

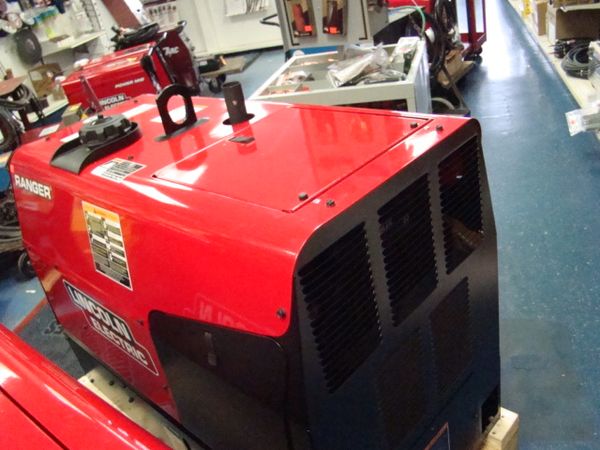

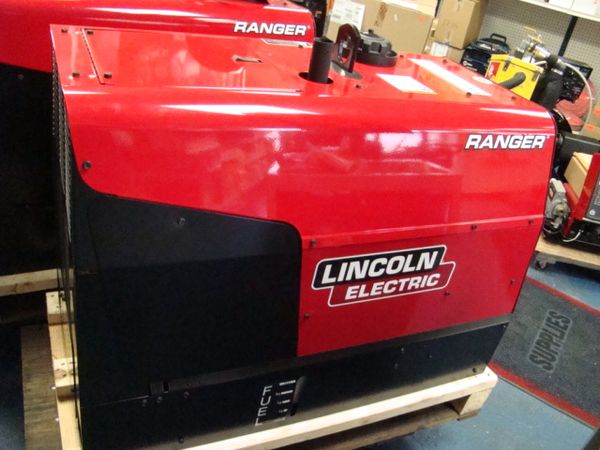

• Totally Enclosed Case
  • Engine is fully protected.
  • 3 service access doors.
  • Low Noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
• Versatile DC Welding
  • Smooth DC welding output for a broad range of stick electrode types.
  • MIG, Flux-Cored and TIG capable (with optional equipment).

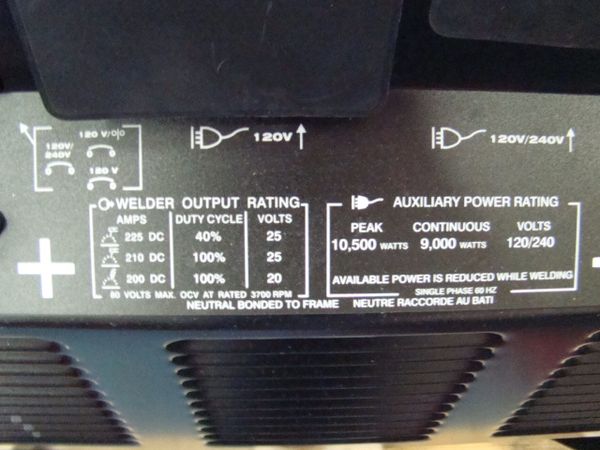

• 10,500 Watts Peak Single-Phase AC Generator Power
  • Peak for motor starting.
  • 9,000 watts continuous power for generator, plasma cutter or inverter welder.
  • Lights, grinder, power tools.
• 23 HP Kohler® Gasoline Engine
  • 2 cylinder, 4 cycle overhead valve air-cooled design.
  • Oil drain extension for easy oil changes.
  • 12 gallon tank for extended run times.
  • Only 1.3 gallons/hour at 210 amps DC, 25V, 100% duty cycle. Visual fuel level gauge on both sides of unit.
• Rugged Reliability
  • Welding and AC Generator Outputs Rated at 104°F (40°C).

Weight:514 lbs. (233 kgs. )
Dimensions (in) H x W x D : 29.9 x 21.5 x 42.3
Dimensions (mm) H x W x D : 759 x 546 x 1073
