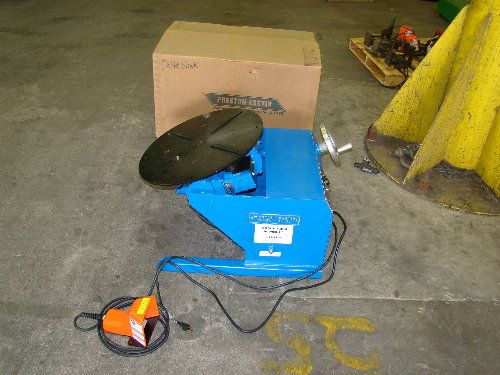

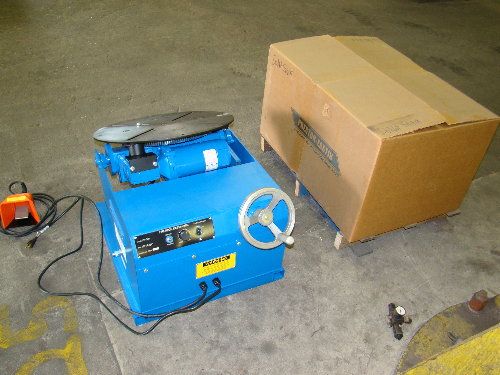

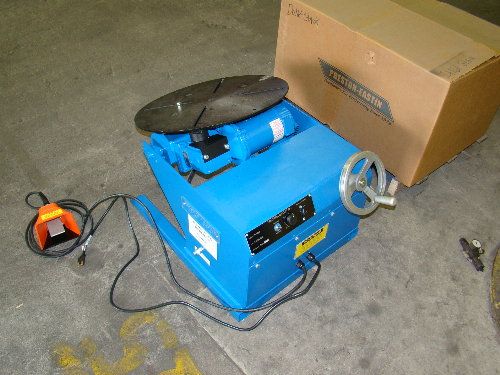

500 lb Preston Eastin, New - Welding Positioners

Capacity

.WEIGHT:                          500 POUNDS

.OFFSET OF C.G. FROM TABLE:      4 INCHES

.ECCENTRICITY OF C.G. FROM AXIS:   4 INCHES

Rotation

.MOTOR:                               VARIABLE SPEED DC, 1/4 HORSEPOWER

.TABLE SPEED:                       0.2 TO 3.7 RPM

.ACTUATION:                         3% BASE SPEED

TORQUE                              2000

Tilt

.RANGE:                               135 DEGREES FORWARD TILT

.TILT TORQUE"                      MANUAL

.ACTUATION                          8 INCH HAND WHEEL WITH SELF-LOCKING WORM DRIVE

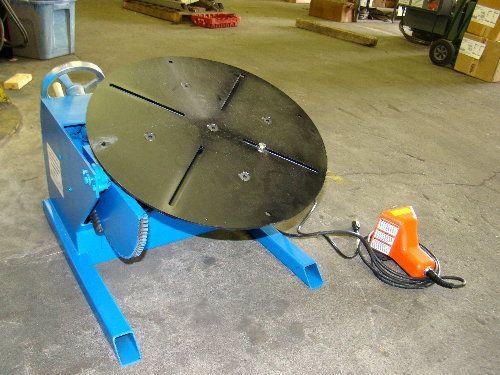

Table

.DIAMETER:                         22 INCH ROUND WITH FOUR RADIAL T-SLOTS

.MOUNTING BOLT SIZE:      3/8 INCH

.BEARINGS:                       TIMKEN TAPERED ROLLER BEARINGS

.GROUND:                          600 AMP SPRING-LOADED MECHANICAL GROUND

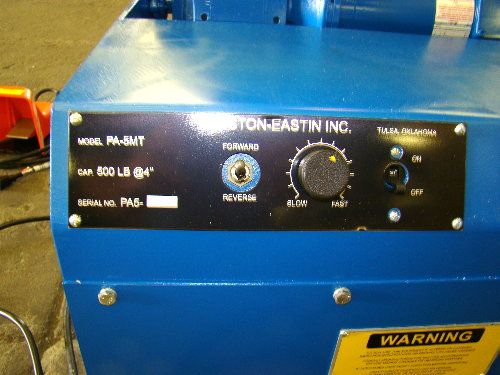

Controls

.CONTROL PANEL:              PANEL BUILT-IN TO POSITIONER FRAME

.SPEED CONTROL:             ONE-TURN POTENIOMETER

.DIRECTIONAL CONTROL:   TWO-POSITION SELECTOR SWITCH

.POWER:                           115V, 15A, SINGLE PHASE, 60 HERTZ.

.OVERLOAD PROTECTION:    CIRCUIT BREAKER

.FOOT SWITCH:                    REMOTE START/STOP WITH 6 FOOT CABLE

Weight

.SHIPPING WEIGHT:            365 POUNDS
