400 LB Phoenix Rebake Oven

[OE005034]

Capacity: 400 LB

Specifications Type 400BT (2-NM)
Electrode Capacity 18" (45.7cm) max. - 400lbs (181 Kg)
Temperature Range 100° to 800°F (38° to 427°C)
Chamber Size / Volume 21.5" diameter x 20" deep / 3.7 cu. ft.
(54.6cm diameter x 50.8cm deep / .104m3)
Shelves 7 metal compartments
Exterior (Welded) #16 gauge
Aluminized Steel Chamber #18 Gauge
Heating Elements 6.0 KW - sheathed elements
Insulation 5" (12.7 cm) avg., thermafiber
Voltage - Three Phase Only 3/60/240 or 3/60/480 Volt AC (convertible)
Wiring Wired for 480V (factory) - convertible to 240V in field
Manual Controls Digital Electronic Indicating Controller with High Temp Limit Device
Recirculating System Calculated, 150 CFM (4.2 m3 / M)
Centrifugal Blower Motor 1/2 H.P.
Exterior Dimensions

Net Weight

31."5 W x 43.5" D x 43" H (90.1 W x 110.5 D x 109.2 H cm)

430 lbs (195 Kg)

Shipping Dimensions

Shipping Weight

43"W x 49"D x 51"H (109.2 W x 124.5 D x 129.5 H cm)

580 lbs (263 Kg)



Product Images:
400 LB Phoenix Rebake Oven
Click to enlarge

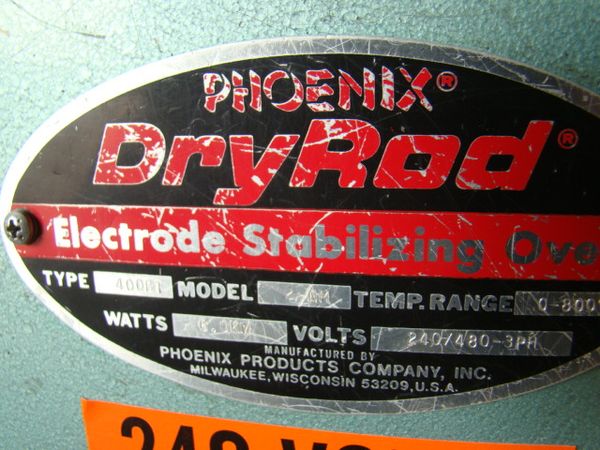

400 LB Phoenix Rebake Oven
Click to enlarge
400 LB Phoenix Rebake Oven
Click to enlarge

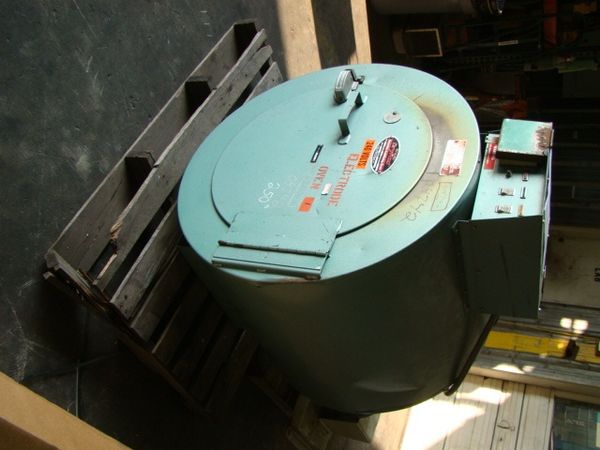

400 LB Phoenix Rebake Oven
Click to enlarge
