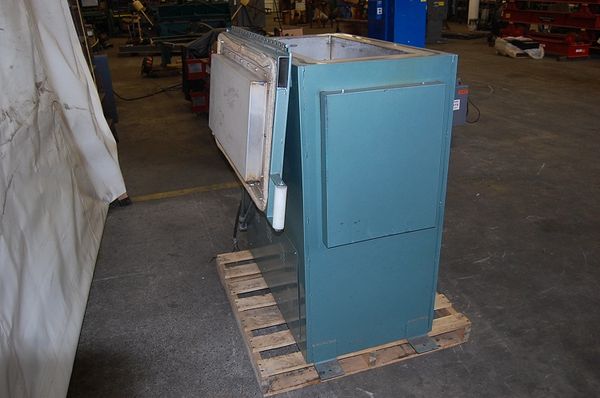

600 LB Phoenix 750 HT Flux Re-Bake Oven Subarc Welding Equipment

Click to enlarge

600 LB Phoenix 750 HT Flux Re-Bake Oven Subarc Welding Equipment

[OE005020]

Capacity: 600 LB

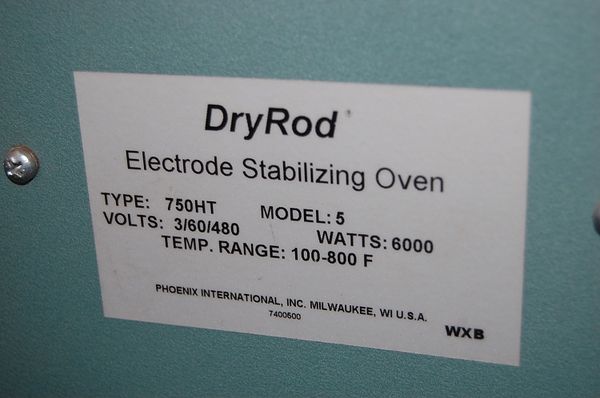

PHOENIX

TYPE 750 HT

FLUX RE-BAKE OVEN

MODEL 5

INPUT VOLTAGE 460

Secure, moisture-proof storage
Top-loading
Adjustable, digital thermostatic control
Full indicating PID controller

Specifications	750HT
Flux Capacity	680 lbs (308 Kg) granulated flux (approx)

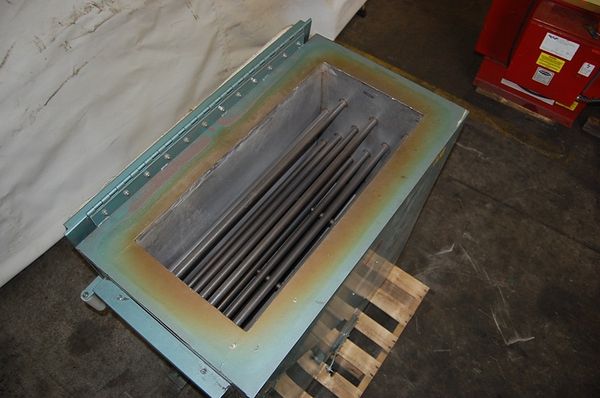

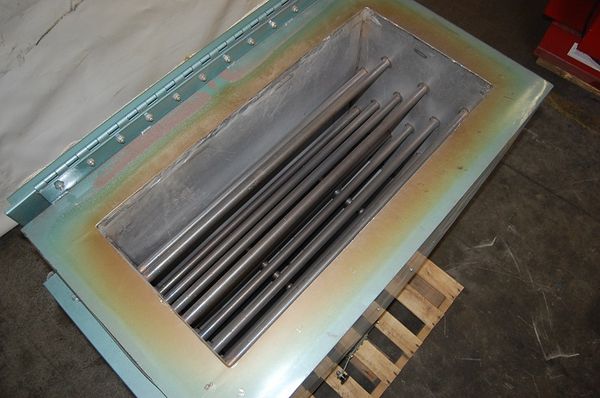

Heating Element	6.0KW (tubular type)
Voltage	240V or 480V (specify one) 50 or 60 cycles, AC, three phase
Input Connection	Terminal Block for field wiring
Temperature Range	100° to 800°F (38° to 427°C)

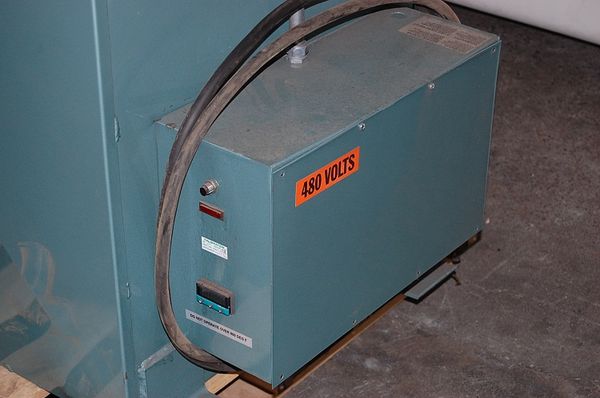

Thermostat	Digital Electronic controller with pilot light Mechanical - High temp. limit, Manual reset
Insulation	4" (10.2cm) Glass Fiber Batt
Chamber	8.6 cubic feet (.24m³) hopper type
Loading Method	Hinged top cover - insulated and vented - load by hand
Discharge	Sloping Bottom - Gravity flow thru 3" (7.6cm) diameter opening with dispensing valve
Exterior Dimensions Net Weight	51"W x 30"D x 52"H (129.5 x 76.2 x 132cm) 590 lbs (268 Kg)
Shipping Dimensions Shipping Weight	56" x 33" x 61" (142.2 x 83.8 x 154.9 cm) 675 lbs (306Kg)

Product Images:

Click to enlarge	Click to enlarge	Click to enlarge	Click to enlarge
Click to enlarge

Related Files:

CLICK HERE FOR SPEC'S
