PANDJIRIS

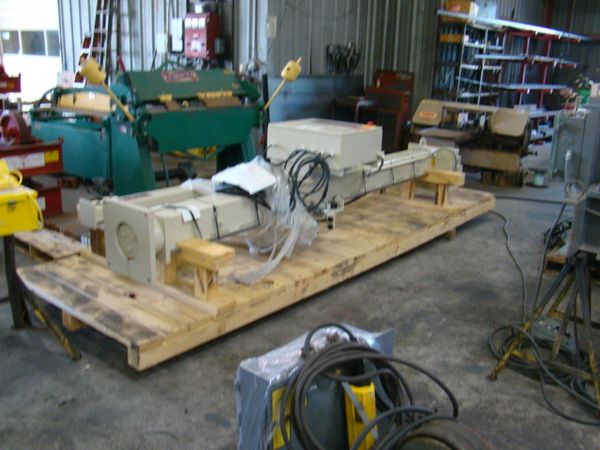

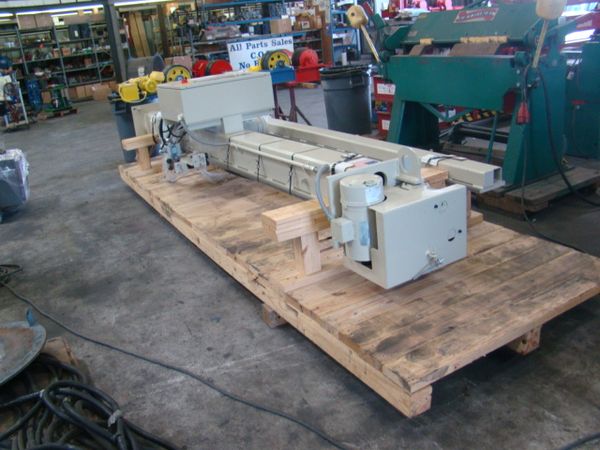

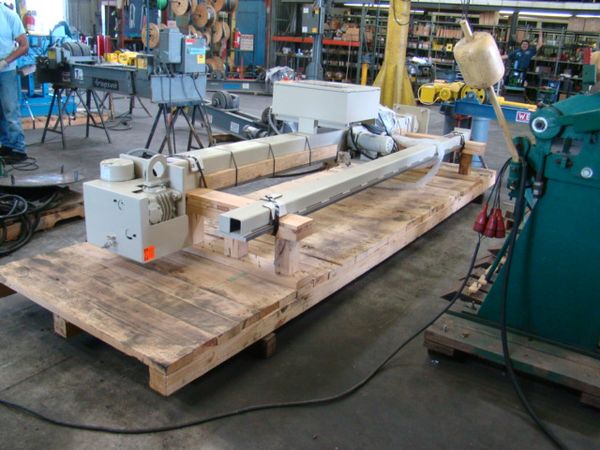

8 X 8 WELDING MANIPULATORsize 8 x 8, is mounted on a bolt-down base. It has an 8' nominal arc height
Vertical Boom Travel
Hoist Speed . . . . . . . . . . . . . . . . 73 IPM Constant Speed
Hoist Motor . . . . . . . . . . . . . . . . 1/2 H.P. AC Brakemotor
. . . . . . . . . . 20-5/8" Minimum, 112" Maximum, Floor to Bottom of Boom.
Horizontal Boom Stroke
Horizontal Boom Speed . . . . . . . 3 to 110 IPM Variable Speed
Horizontal Boom Motor . . . . . . . 1/3 H.P. DC Motor
Anti-Fall Device . . . . . . . . . . . . . . . . Spring loaded, self energizing pawl mounted on the crosshead engages column face.
Column Rotation . . . . . . . . . . . . . . . . Manual 360 degree rotation with a manually operated screw friction lock.
Bolt Down Base . . . . . . . . . . . . . . . . Size 15" x 15", with (4) 13/16" Drilled holes on 13" square.
Control . . . . . . . . . . . . . . . . . . . . . . . Pendant control equipped with joystick for Boom "Up-Down-In-Out".
Boom Speed Potentiometer and a Weld-Rapid Selector Switch. Pendant Controls operate on 115
volts on 25' of rubber covered cable.
Electrical . . . . . . . . . . . . . . . . . . . . . . 230/460 volts, 6/3 Amps, 50/60 Hz
. . . . . . . 8' Stroke beginning 21" From Center of Column
Double 8 Manipulator,
and a 8' horizontal boom stroke at a variable speed of 3" to 110" per minute. This is electronically controlled
with dynamic braking beginning 21" from the centerline of the column and 360 degree manual column
rotation. The standard electricals are 230/460 volts, 3 phase, 6/3 Amps, 50/60 Hz with 24 volt controls.
Wired to conform to National Electrical Code Standards.
