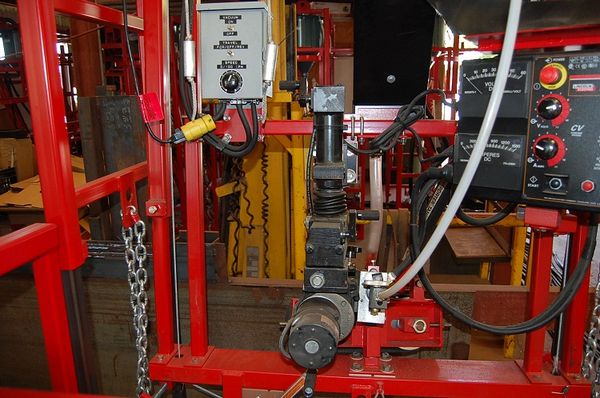

AUTOMATIC GIRTH WELDER
MADE IN THE USA
INPUT POWER 115 VAC 15 AMP
TRAVEL SPEED 0-100 INCHES PER MINUTE (BALDOR D/C MOTOR AND CONTROLS)
PLATE COURSE 6 - 10 FT
PLATE THICKNESS 1/4"- 1 1/4"
MINIMUM DIAMETER 19 FT
SHIPPING WEIGHT 1800 LBS
AGW-1 FITTED WITH

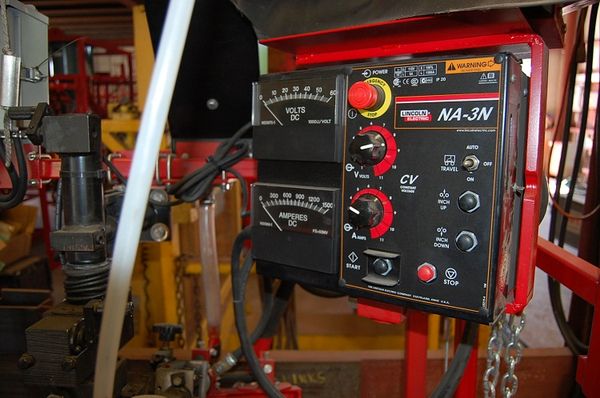

K 210-2 LINCOLN NA-3 CONTROL
K 208-A LINCOLN HEAD ASSEMBLY
K 96 LINCOLN HORZONTAL ADJUSTMENT
K 29 LINCOLN VERTICAL ADJUSTMENT
K 299 LINCOLN WIRE REEL ASSEMBLY
SET UP FOR 3/32 WIRE
250' POWER/CONTROL CABLE ASSEMBLY (4/0 WELD CABLE, M17291-3- CONTROL CABLE, 115 VOLT POWER CORD)

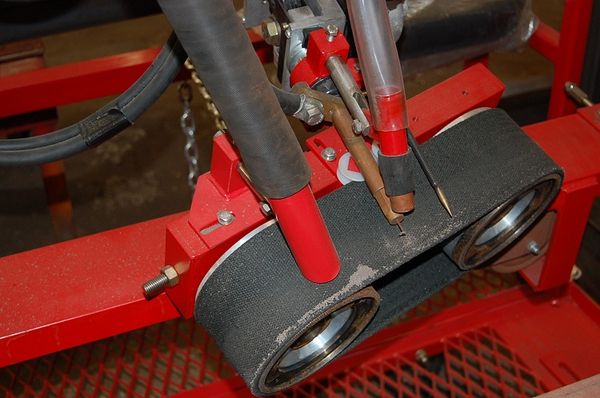

FLUX BELT ASSEMBLY(KEVLAR BELT)
FLUX RECIRCULATING SYSTEM
