250 Amp Lincoln Ranger 250 GXT Gasoline Welding Machine

[WM005057]

Capacity: 250 Amp $4,200.00

Ranger® 250 GXT (w/Electric Fuel Pump)
XTra Performance! XTra Power! XTra Protection!

Product Number:  K2382-4

Industrial Price: 4388.00 (USD) *See Details



A great choice for getting the job done! For construction contractors, maintenance crews, farmers or ranchers, the Ranger® 225 does a variety of basic welding jobs. And with 10,500 watts of peak AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power. At your service – everyday!™

Review our Ranger® Selection Guide to be sure you select the engine driven welder/generator that's right for you.


Advantage Lincoln
  • Totally Enclosed Case
    • Engine is fully protected.
    • 3 service access doors.
    • Low Noise – 76.4 dBA sound level at 23 ft. (7 m). 100.7 dB sound power (Lwa) at rated output.
    • Choose from painted or stainless steel roof, case sides and engine doors.
  • Versatile AC/DC Welding
    • AC/DC welding output for a broad range of stick electrode types.
    • Excellent AC TIG welding with optional TIG Module and either a foot or hand Amptrol™ for aluminum and other alloy welding.
    • MIG and Flux-Cored capable (with optional equipment).
    • Remote ready! 6-pin connector and local/remote switch for remote control operation.
  • 11,000 Watts Peak Single-Phase AC Generator Power
    • Peak for motor starting.
    • 10,000 watts continuous power for generator, plasma cutter or inverter welder.
    • Lights, grinder, power tools.
  • 23 HP Kohler® Gasoline Engine
    • 2 cylinder, 4 cycle overhead valve air-cooled design.
    • Electric fuel pump avoids vapor lock.
    • Oil drain extension for easy oil changes.
    • 12 gallon tank for extended run times.

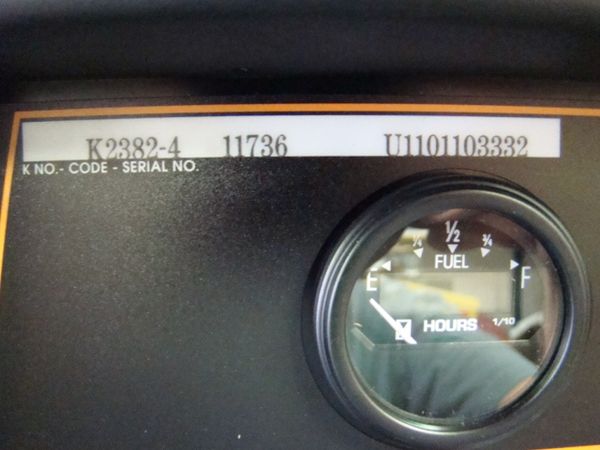

    • Electric fuel gauge located on control panel makes it easy to check the fuel level during operation and refueling.
  • Rugged Reliability
    • Welding and AC Generator Outputs Rated at 104°F (40°C).

Physical specifications
Weight:602 lbs. (273 kgs. )
Dimensions (in) H x W x D : 36.2 x 21.5 x 42.3
Dimensions (mm) H x W x D : 920 x 546 x 1074









Description
Output
Input


Processes
Stick, TIG, MIG, Flux-Cored, Gouging


Recommended General Options
X2382 Extended Warranty - Ranger 250 GXT
K802N Power Plug Kit
K1690-1 GFCI Receptacle Kit
K1898-1 Spark Arrester Kit
K886-2 Canvas Cover (Large)
K1737-1 All Terrain Undercarriage
K1770-1 Factory Undercarriage
K1745-1 Welding Gas Cylinder, LPG Tank Holder
K2635-1 Small Two-Wheel Road Trailer with Duo-Hitch
K2639-1 Fender and Light Kit
K2640-1 Cable Rack


Recommended Stick Options
K704 Accessory Kit - 400 Amp
K875 Accessory Kit - 150 Amp
K857 Remote Output Control
K857-1 Remote Output Control
K2627-2 Remote Output Control with 120V AC Receptacles


Recommended TIG Options
K1783-4 PTA-26 TIG Torch (25 ft 2pc)
KP509 Parts Kit for PTA-18 and PTA-26 Series Torches
K930-2 TIG Module
K936-3 Control Cable for TIG Module
K937-45 TIG Module Control Cable Extension
K963-3 Hand Amptrol™
K870 Foot Amptrol™
K938-1 Contactor Kit
K939-1 Docking Kit


Recommended Wire Feeder Options
K2613-1 LN-25 PRO
K126-12 K126™ PRO Innershield® Guns 350A FCAW-SS 15 ft 1/16 - 5/64
KP1697-068 Drive Roll Kit .068 in (1.7 mm) Cored Wire
KP1697-5/64 Drive Roll Kit 5/64 in (2.0 mm) Solid/Cored Wire
K2652-2-10-45 Magnum® PRO 350 Ready-Pak 15 ft 035-5/64
KP1696-1 Drive Roll Kit Combination .035 in / .045 in Solid Wire


Recommended Spool Gun Options
K2532-1 Magnum® 100SG Spool Gun, Air-Cooled
K2473-1 Power MIG® 180C 208-230/1/60
K1816-1 Full-KVA Adapter Kit



Welding Specifications
Rated CC AC Output Amps/Volts/Duty Cycle Rated CC DC Output Amps/Volts/Duty Cycle Rated CV Output Amps/Volts/Duty Cycle Output Range
250/25/100% 250/25/100% 250/25/100% 50-250A AC/DC

Engine Specifications
Type of Engine Cylinders HP & Speed (rpm) Generator Output Fuel Type
Kohler OHV Command CH23S 2 23@3600 11000 watts peak
10000 watts continuous
Gas


* Prices shown are US Industrial Prices valid only in the US and are for information only.  Industrial Prices are exclusive of any additional charges including, but not limited to: optional or accessory features, shipping and handling fees, taxes, import/export fees and duties, etc., actual price may vary.  Prices shown are those as of the date printed or placed on this website and are subject to change without notice.  Contact your local Lincoln Electric Distributor for current pricing.



Product Images:

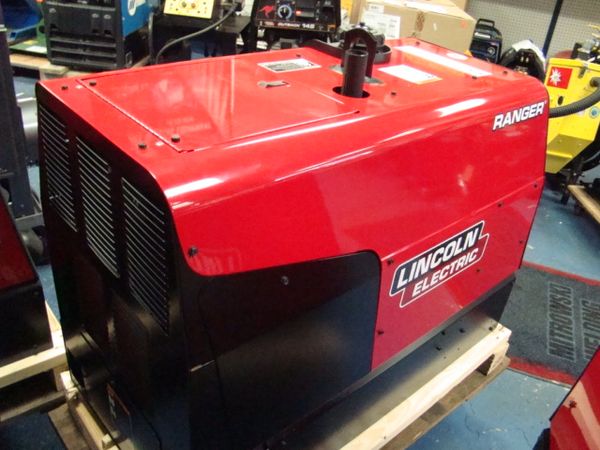

250 Amp Lincoln Ranger 250 GXT Gasoline Welding Machine
Click to enlarge

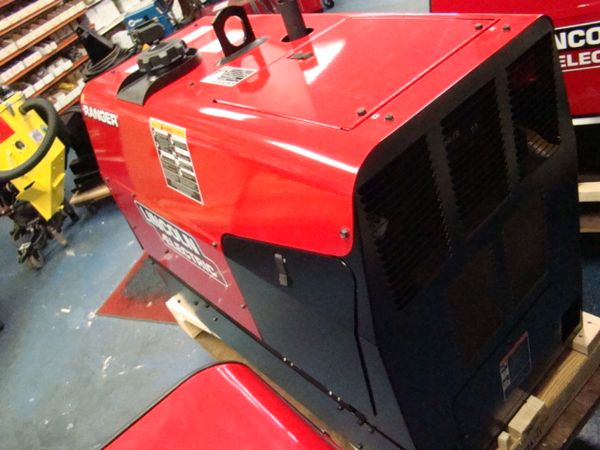

250 Amp Lincoln Ranger 250 GXT Gasoline Welding Machine
Click to enlarge

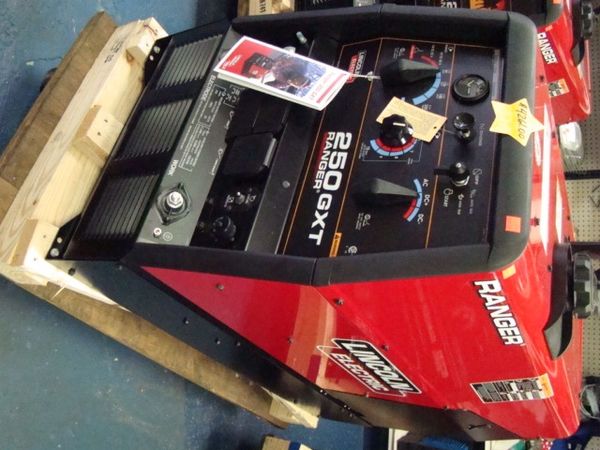

250 Amp Lincoln Ranger 250 GXT Gasoline Welding Machine
Click to enlarge
250 Amp Lincoln Ranger 250 GXT Gasoline Welding Machine
Click to enlarge
250 Amp Lincoln Ranger 250 GXT Gasoline Welding Machine
Click to enlarge
