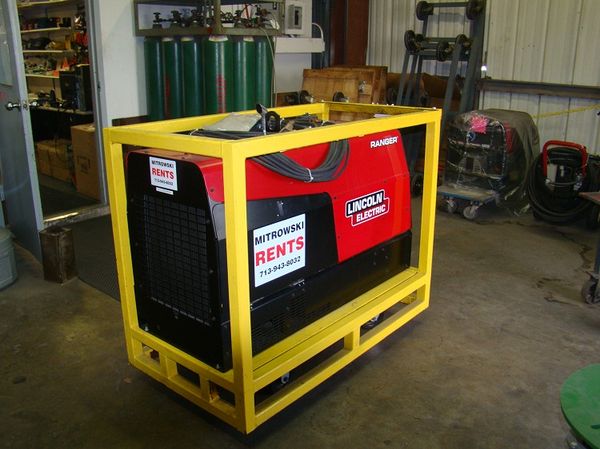

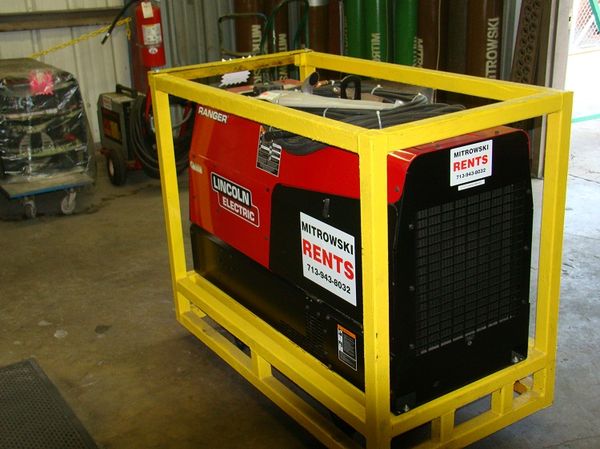

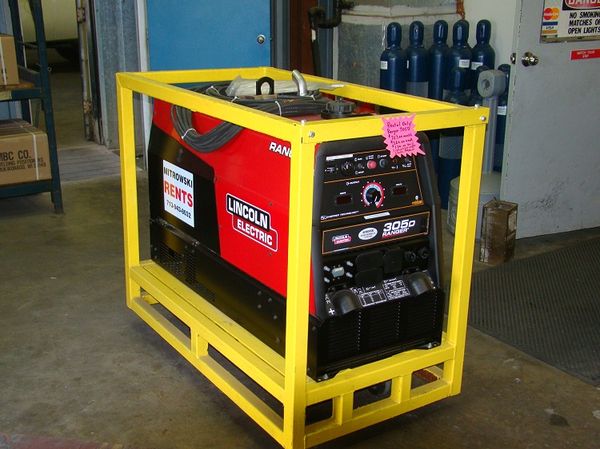

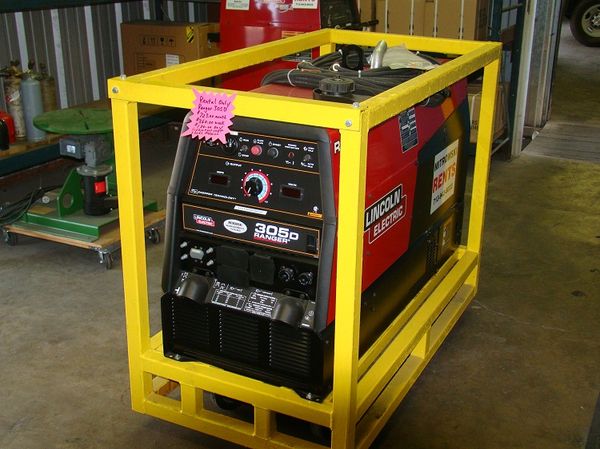

300 Amp Lincoln Ranger 305D Rental Diesel Welding Machin

A great choice for getting the job done! For construction contractors, maintenance crews, farmers or ranchers, the Ranger® 225 does a variety of basic welding jobs. And with 10,500 watts of peak AC generator power, it handles a variety of other jobs: lights, grinder, Lincoln Electric inverter, plasma cutter (separate air supply needed) or emergency power. At your service – everyday!™

Review our Ranger® Selection Guide to be sure you select the engine driven welder/generator that's right for you.

• Multi-Process Welding
  • Excellent DC multi-process welding for general purpose stick, downhill pipe (stick), TIG, cored-wire, MIG (CO2 and mixed gas) and arc gouging.
  • Only compact diesel welder in North America rated at 29V for 300 amps of stick or CV wire welding.
  • CV wire welding with up to 5/64 in. (2.0 mm) diameter electrodes.

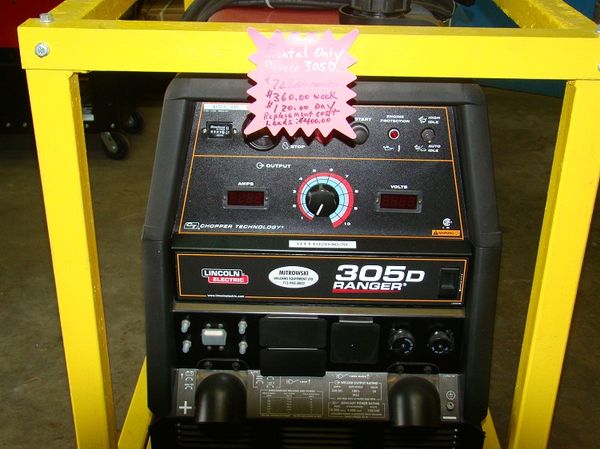

• Digital Weld Meters
  • Digital weld meters for amps and volts makes it easy to precisely pre-set your procedures and monitor actual welding output.
• Superior Arc Performance
  • Lincoln Electric Chopper Technology® – provides easy starts, a smooth arc, low spatter and excellent bead appearance.
• 10,000 Watts Peak Single-Phase AC Generator Power
  • 10,000 watts peak for motor starting.
  • 9,500 watts continuous for high capacity needs such as a back-up generator, powering a Lincoln Electric Invertec® inverter welder. Also use for lights, a grinder or other power tools.
  • AC generator voltage is constant at 120V or 240V at any weld dial setting.
• Skewed Rotor Design
  • Skewed rotor design provides AC power suitable for operating Lincoln Electric inverter power sources.
• Rugged Reliability
  • Welding and AC Generator Outputs rated at 104ºF (40ºC).
• 18.8 HP Kubota® Diesel Engine
  • Water-cooled for low noise.



    Physical specifications
