WM005022
Click to enlarge
225 Amp Lincoln Precision Tig Welding Machine
[WM005022]
Capacity:
225 Amp Tig/Stick
Precision TIG® 225 Ready-Pak 208/230/1/60
The Power to Perform!
Product Number: K2535-1
Professional features, like the most auxiliary power and the widest output range in its class, make the Precision TIG® 225 a great value.The Precision TIG® 225 gives you the 'Power to Perform', for automotive/motorsports, vocational schools, home/shop, and general fabrication.
Advantage Lincoln
5-230 amps
is the widest welding range in its class.
Patented Micro-Start II™
Technology delivers extremely stable low amperage starting, welding and cratering for AC and DC welding.
FREE TIG Pulser
- Optimal heat input control results in reduced warping and burnthrough on thin materials and improved appearance.
Excellent Stick Welder
— Even with Fleetweld® 5P (E6010).
AC Auto-Balance®
automatically sets the optimal cleaning vs. penetration levels for great looking aluminum welds.
Standard NEMA 6-50 plug
on 9ft. (2.7m) input power cord with receptacle. (208/230V models only).
115 volt auxiliary power
receptacles with 20 amp service reliably powers water coolers or other tools (208/230V model only, all other models 6 amps).
Standard torch parts storage
compartment and cable hanger keep you organized.
Ready-Pak® models
include a Pro-Torch® PTA-17 air-cooled 150 amp torch with 12.5 ft. (3.8 m) Ultra-Flex™ cable.
Fan-As-Needed™ (F.A.N.)
prevents overheating. F.A.N. reduces power consumption noise, motor wear and dust in the machine.
CSA C/US
certified.
Physical specifications
Weight:212 lbs. (96 kgs. )
Dimensions (in) H x W x D : 20.7 x 14.5 x 25.6
Dimensions (mm) H x W x D : 526 x 368 x 650

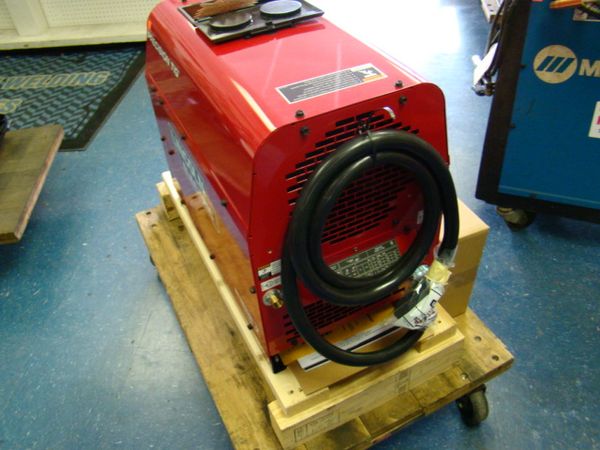

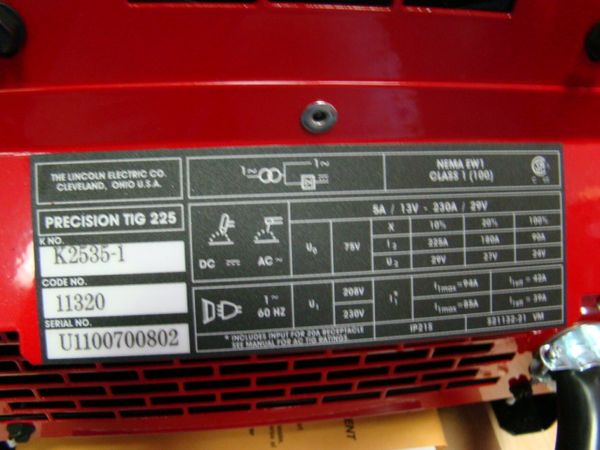

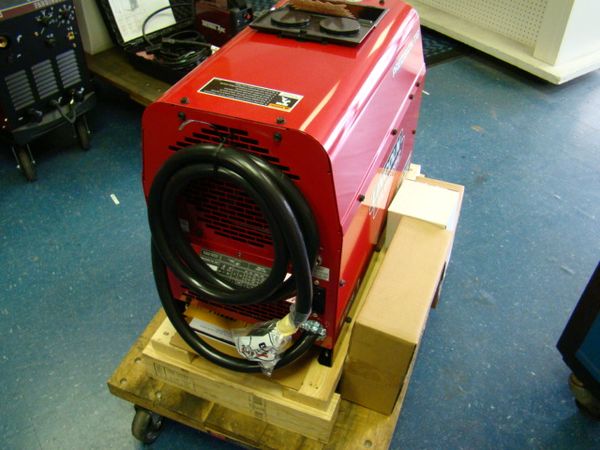

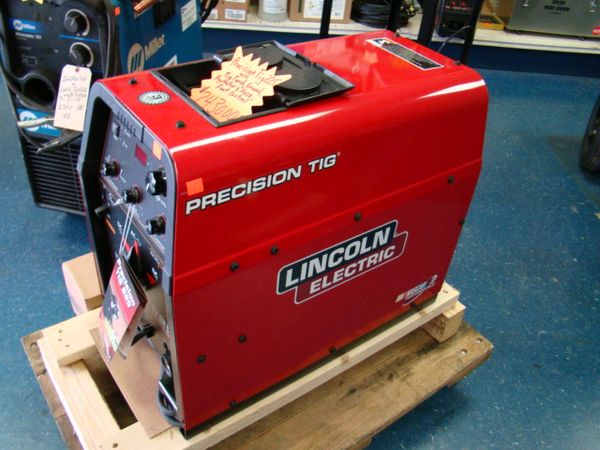

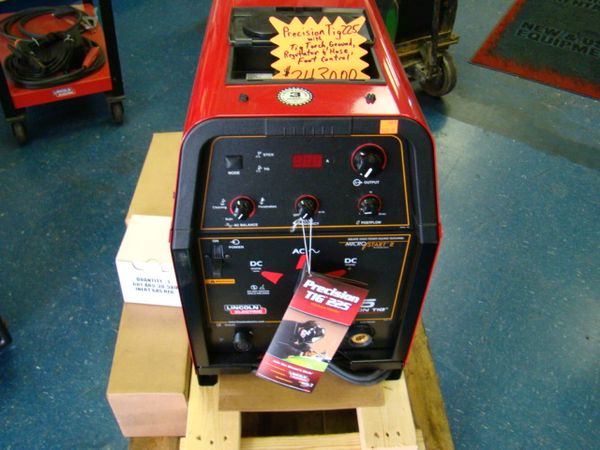

Product Images:
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Click to enlarge
Quantity:
