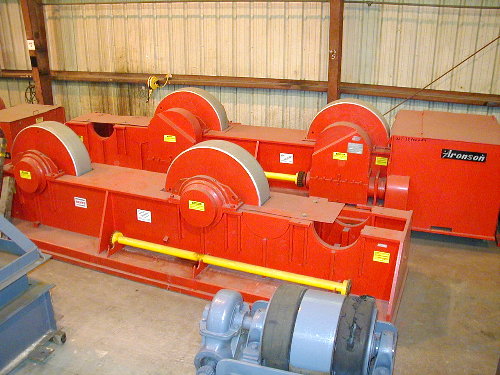

Aronosn WSD-1000 Tank Turning Rolls; 35' Diameter 480 Volts; Remote Control; For Rent

MANUFACTURE ARONSON
WEIGHT CAPACITY TWIN DRIVERS. 800 TONS.
SIZE 1000 STEEL WHEEL TURNING ROLLS
WSD 1,000 VARIABLE SPEED DRIVER 35,500 LBS
1,000,000 LBS WEIGHT CAPACITY. TURNING CAPACBILITY FOR A 1,200 TON CONCENTRIC VESSEL. 66" TO 35' DIAMETER RANGE WITH (3) 82", 106" AND 130" LINE BORED CENTER DISTANCE CRADLE SOCKETS AND DRIVE SHAFTS. WHEEL SURFACE SPEED 4" PER MINUTE TO 40" PER MINUTE WITH 80,000 LBS. TRACTIVE PULL.30HP 100: 1 AC MOTOR AND DRIVE WITH DYNAMIC BRAKING. RAPID TRAVERSE AND MOTOR OVER TEMPRATURE INDICATOR LIGHT. IN ELECTRICAL PANEL. DUST-TIGHT PENDENT WITH 10-TURN POT FOR-OFF-REV SELECTOR/START/STOP/RAPID TRAVERSEPUSH BUTTONS, WITH 60' CABLE. 40" DIAMETER X 10" WIDE, SOLID 45 CARBON STEEL WHEELS. THROUGH HARDENEDTO ROCKWELL "C" 45-50, PRECISION MACHINED CROWN-FACE. 460/3/60 NEMA 12 DUST-TIGHT ELECTRICALS. 115V CONTROL VOLTAGE.
WSI 1,000 IDLER 24,500LBS
1,000,000 LBS. CAPACITY SIMILAR TO WSD 1,000 BUT NOT POWERED.
1000-TON ARONSON
WHEELS 10" WIDE X 40" DIAMETER X 48" TO THE FLOOR
DRIVER 221" LONG X 56" WIDE X 48" TALL
IDLER 174" LONG X 48" WIDE X 48" TALL
SEPERATE CONTROL BOX 43" WIDE X 47" TALL X 36" DEEP
