80,000 Weld Wire WWFT-80 Welding Floor Turn Table

[FT005008]

Capacity: 80,000 LB

WELD WIRE

MODEL
Item	Specification
Model	WWFT-80

Load Capacity	80,000lbs.

Center of Gravity	12"

Rotational Torque	97,500

Variable Speed HP	2 HP AC

Variable Speed RPM	.04-1.1 RPM

Constant Speed HP	2 HP AC

Constant Speed RPM	1.1 RPM

Electrical Power	440 standard (or 220 please specify)

Control	Variable speed programmable AC

Hand Pendant	Speed control, rapid, For/Rev, Start, Stop w/25' cable

Table Height (floor to table top)	25"

Table Diameter	72"

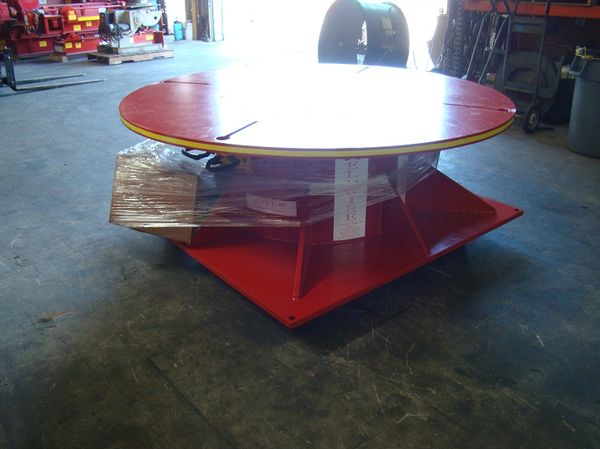

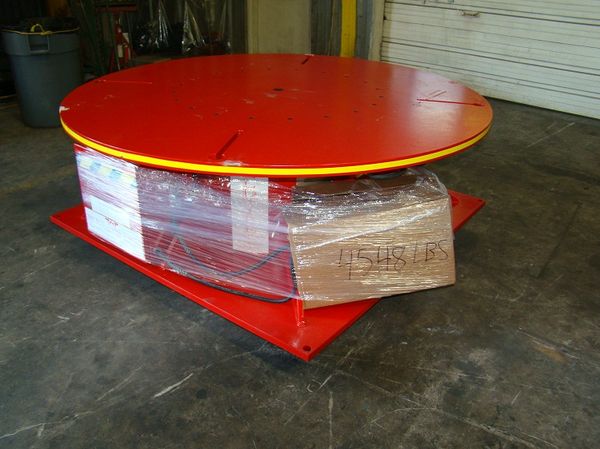

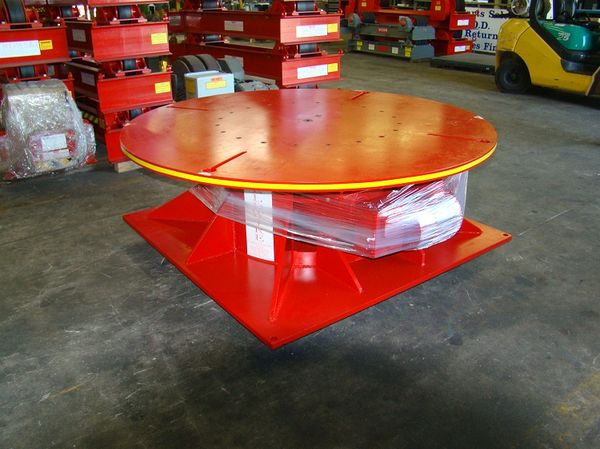

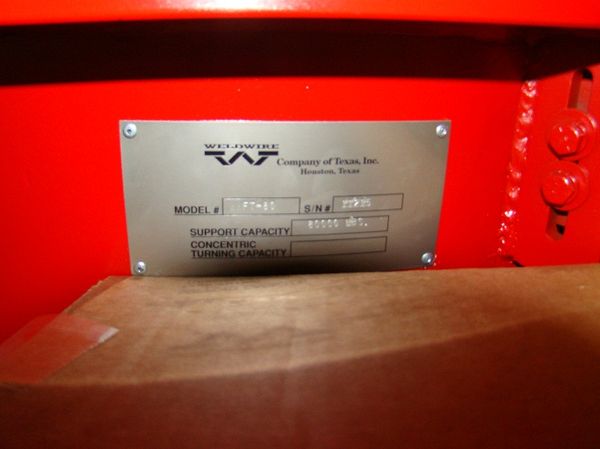

Product Images:

Click to enlarge	Click to enlarge	Click to enlarge	Click to enlarge
