MADE IN USA

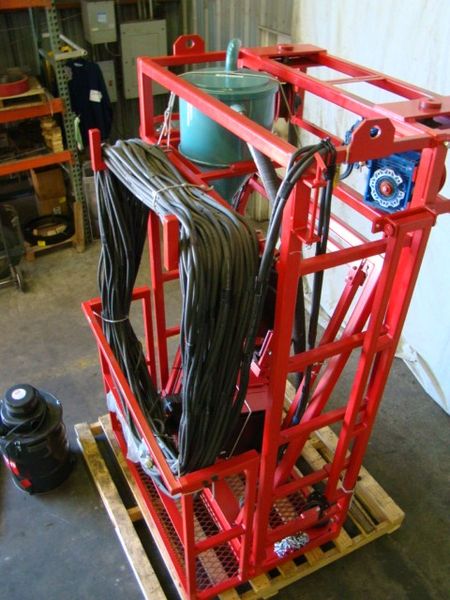

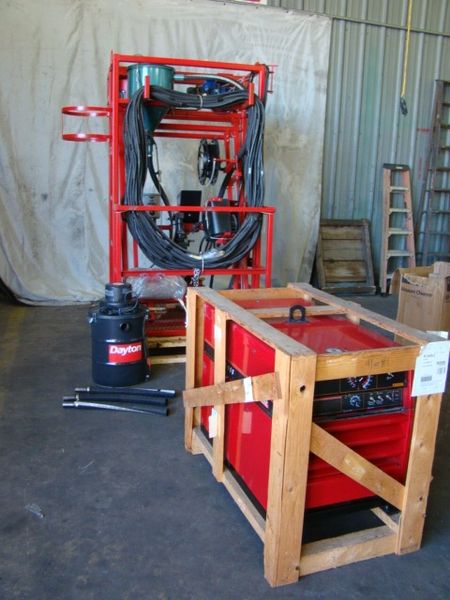

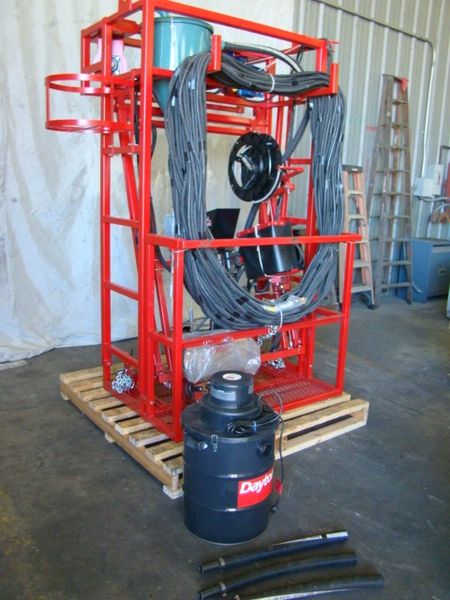

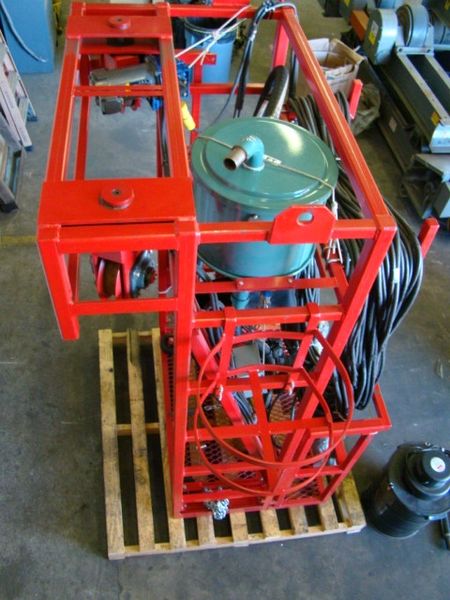

3 O'CLOCK AUTOMATIC GIRTH WELDER.
THE TUBE-IN-TUBE DESIGN ALLOWS FOR A TELESCOPING ACTION EASILY SET FOR ANY PLATE COURSE FROM 5' TO 10', TRAVEL SPEED IS 0-100 IPM
SHIPPING WEIGHT 1750 LBS.
UNITS AVAILABLE FOR SALE OR RENTALS.
INCLUDES
K 210-2 LINCOLN NA-3 CONTROL

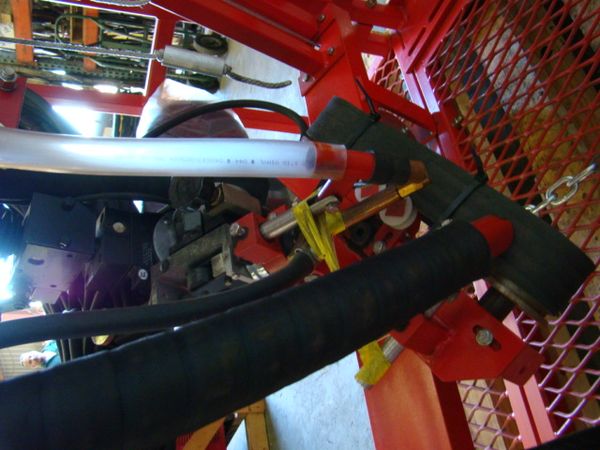

K 208-A LINCOLN HEAD ASSEMBLY
K 96 HORZONTAL ADJUSTMENT
K 29 VERTICAL ADJUSTMENT
K 299 WIRE REEL ASSEMBLY
SET UP FOR 3/32 WIRE
250' POWER/CONTROL CABLE ASSEMBLY (4/0 WELD CABLE, M17291-3- CONTROL CABLE, 115 VOLT POWER CORD)
FLUX BELT ASSEMBLY
FLUX RECIRCULATING SYSTEM
