Home » Floor Turntables » FT005005

120,000 LB Weld Wire WWFT 120 S/N 10853 Floor Turn Table
Click to enlarge

120,000 LB Weld Wire WWFT 120 S/N 10853 Floor Turn Table

[FT005005]

Capacity: 120,000 LB

120,000# FLOOR TURNTABLE

al
Item Specification
Model WWFT-120
Load Capacity 120,000lbs.
Center of Gravity 12"
Rotational Torque 145,800
Variable Speed HP 3 HP AC
Variable Speed RPM .04-1.1 RPM
Constant Speed HP 3 HP AC
Constant Speed RPM 1.1 RPM
Electrical Power 440 standard (or 220 please specify)
Control Variable speed programmable AC

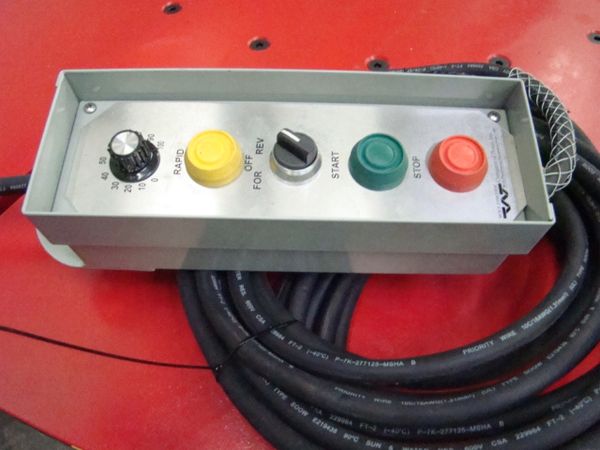

Hand Pendant Speed control, rapid, For/Rev, Start, Stop w/25' cable
Table Height (floor to table top) 33"
Table Diameter 72"
Option: Foot Control Variable speed or ON/OFF

SERIAL NUMBER 10853

WEIGHT 4,682 LB


Product Images:
120,000 LB Weld Wire WWFT 120 S/N 10853 Floor Turn Table
Click to enlarge 		120,000 LB Weld Wire WWFT 120 S/N 10853 Floor Turn Table
Click to enlarge 		120,000 LB Weld Wire WWFT 120 S/N 10853 Floor Turn Table
Click to enlarge 		120,000 LB Weld Wire WWFT 120 S/N 10853 Floor Turn Table
Click to enlarge
120,000 LB Weld Wire WWFT 120 S/N 10853 Floor Turn Table
Click to enlarge 		120,000 LB Weld Wire WWFT 120 S/N 10853 Floor Turn Table
Click to enlarge
